Silicon Carbide Vulcanized Fiber Discs Manufacturer

Silicon Carbide Vulcanized Fiber Discs

: http://indus-abrasives.com/1-4-4-silicon-carbide-vulcanized-fiber-discs.html

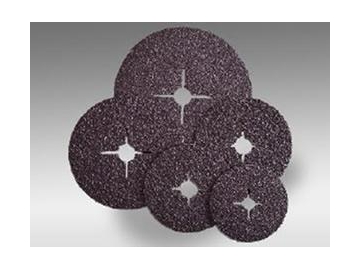

Joysun Silicon Carbide vulcanized fiber discs are specially designed and manufactured with the high performance silicon carbide grains bonded onto a strong vulcanized cotton fiber. The self-sharpening SiC grains can perform fast and cool cutting, high stock removal and also can reduce thermal load on certain materials. They provide consistent coarse grinding all the way to polishing and finishing with an incredibly long service life. Joysun Silicon Carbide fiber discs are suitable for ferrous and non-ferrous materials, hard cast iron, stainless steel, brass, aluminum, plastic, fiberglass, wood, glass, concrete and stone.

JAC-C818VF Silicon Carbide Vulcanized Fiber Discs

Availability

Product Code	JAC-C818VF	JAC-C828VF	JAC-C838VF
Abrasive Grains	Silicon Carbide	Silicon Carbide	Silicon Carbide
Fiber Back Thickness	Standard	Standard	Standard

SIZE ( D x H )	SIZE ( D x H )	GRIT	MAX	STD	PART #	PART #	PART #
SIZE ( D x H )	SIZE ( D x H )	GRIT	RPM	PACK	PART #	PART #	PART #
4" x 5/8"	100 mm x 16 mm	16	15,300	100	82201	82203	82203
		24			82214	82216	82216
		36			82227	82229	82229
		40			82230	82232	82232
		50			82243	82245	82245
		60			82256	82258	82258
		80			82269	82261	82261
		100			82272	82274	82274
		120			82285	82287	82287
		150			82298	82290	82290
4-1/2" x 7/8"	115 mm x 22.23 mm	16	13,300	100	82301	82303	82303
		24			82314	82316	82316
		36			82327	82329	82329
		40			82330	82332	82332
		50			82343	82345	82345
		60			82356	82358	82358
		80			82369	82361	82361
		100			82372	82374	82374
		120			82385	82387	82387
		150			82398	82390	82390
5" x 7/8"	125 mm x 22.23 mm	16	12,200	100	82401	82403	82403
		24			82414	82416	82416
		36			82427	82429	82429
		40			82430	82432	82432
		50			82443	82445	82445
		60			82456	82458	82458
		80			82469	82461	82461
		100			82472	82474	82474
		120			82485	82487	82487
		150			82498	82490	82490
6" x 7/8"	150 x 22.23 mm	16	10,200	100	82501	82503	82503
		24			82514	82516	82516
		36			82527	82529	82529
		40			82630	82632	82632
		50			82643	82645	82645
		60			82656	82658	82658
		80			82669	82661	82661
		100			82672	82674	82674
		120			82685	82687	82687
		150			82698	82690	82690
7" x 7/8"	180 mm x 22.23 mm	16	8,600	100	82701	82703	82703
		24			82714	82716	82716
		36			82727	82729	82729
		40			82730	82732	82732
		50			82743	82745	82745
		60			82756	82758	82758
		80			82769	82761	82761
		100			82772	82774	82774
		120			82785	82787	82787
		150			82798	82790	82790
