Subplate manifold allows a simple solution to mount a single valve in a hydraulic system

Subplate manifold allows a simple solution to mount a single valve in a hydraulic system
Subplate manifold allows a simple solution to mount a single valve in a hydraulic system
Subplate manifold allows a simple solution to mount a single valve in a hydraulic system
: http://hydraulicsystemcn.com/1-4-8-pressure-reducing-relieving.html

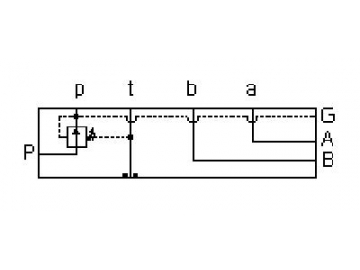

  • Reducing/Relieving on P
  • Reducing on P
Port Designators
Modifiers Ports
ETB, /V Ports A, B, P: 3/8" NPTF; Port T: 3/8" NPTF; Gage Port: 1/4" NPTF;
Parameter
Body Type Subplate
Interface None
Body Features On P, port 3 to T, bottom T port
Mounting Hole Diameter .28 in.
Mounting Hole Depth Through
Mounting Hole Quantity 4
Open Cavities 1
Cavity T-11A
Port Size 3/8" NPTF
Model Weight 2.08 lb.
Face
Custom Manifolds ServiceStandard Manifold
