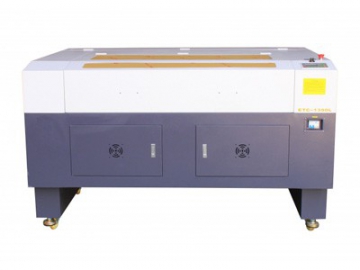

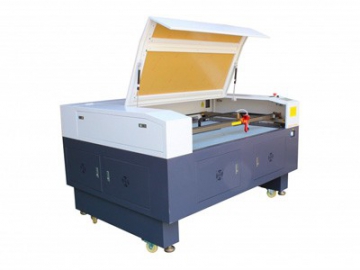

CO2 Laser Cutter with Lifting Platform Manufacturer

CO2 Laser Cutter with Lifting Platform

: http://lasercutterscn.com/2-gs-ce-laser-cutter.html

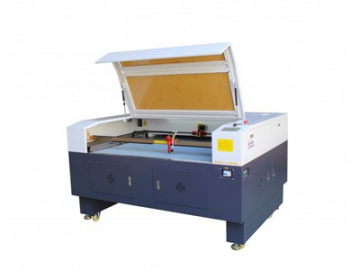

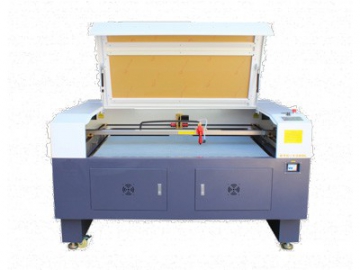

CO2 laser cutter with lifting platform is designed for engraving and hollow carving workpieces of various heights. This machine is equipped with electric lifting platform and has high load capacity. It can process various non-metallic materials including wooden product, paper, plastic, rubber, acrylic, jade, etc.

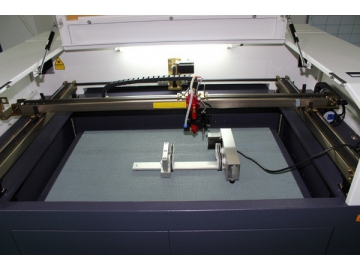

Rotary fixture

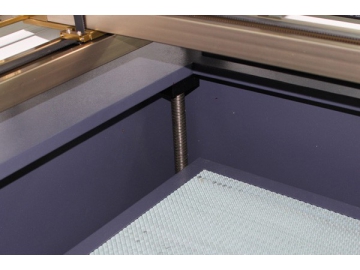

Lifting platform

Features

CO2 laser cutter with lifting platform cuts precisely and won’t create burnt or yellow edges.
Its dot switch is very durable.
This CO2 laser cutter is equipped with electric lifting platform and has high load capacity.
Main leakage protection switch ensures the personnel and equipment safety.
Professional rotary fixture is optional which is used for engraving cylindrical products.

Technical Parameters

Model	ETC-1390L
Laser type	Glass tube or RF CO2 laser
Working area	1300*900mm
Laser power	60-180W
Cutting speed	0-36000MM/Min
Engraving speed	0-64000MM/Min
Position accuracy	±0.015MM
Minimum line width	0.15-0.3MM
Cooling type	Water cooling system
Control mode	DSP
Acceptable graphic format	PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Operating voltage	AC 110/220V±10%, 50/60Hz
Operating temperature range	0-40℃
Machine power	< 2000W
Dimensions	2000x1550x1300mm
Weight	450KG
Laser safety class	Class IV

Other models:

Model	ETC-640L	ETC-960L	ETC-1080L	ETC-1610L
Working area	60x40cm	90x60cm	100x80cm	160x100cm
Dimensions	160x105x130cm	160x125x130cm	170x145x130cm	230x165x130cm
Weight	280kg	340kg	380kg	600kg

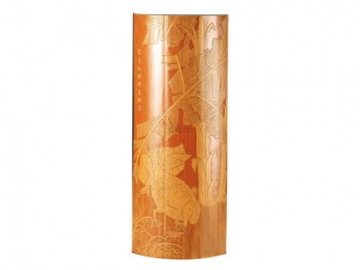

Samples
