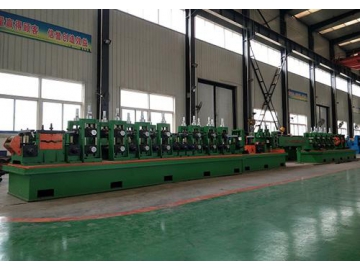

ERW Tube Mill, 25mm-89mm
Round, Square, Rectangular Tube
Steel Coil → Double-arm Uncoiler → Shear and End Cutting & Welding → Coil Accumulator → Forming (Flattening Unit + Main Driving Unit + Forming Unit + Guide Unit + High Frequency Induction Welding Unit + Squeeze Roller) → Deburring → Water Cooling → Sizing & Straightening → Flying Saw Cutting → Pipe Conveyor → Packaging → Warehouse Storage
Basic Technical Parameters | Production Capacity | |
| Round Pipe | 25mm - 89mm |
| Square & Rectangular Pipe | 20*20 - 70*70(90*50)mm |
| Wall Thickness | 1.0 - 4.5mm (Round Pipe) 1.0 - 3.5mm(Square Pipe) |
| Speed | Max. 100mm |
| Pipe Length | 6m – 12m |
| Steel Strip Specification | |
| Material | Low Carbon Steel, Q235, Q195 |
| Coil Inner Diameter | 460 - 510MM |
| Coil Outer Diameter | Max. 1800mm |
| Strip Width | 80mm – 280mm |
| Strip Thickness | 1.0mm – 4.5mm |
| Max. Coil Weight | 3500kgs |
| Electricity | |
| Dynamic Power | 380V, 3-phase, 50Hz (depends on local facilities) |
| Control Power | 220V, single-phase, 50 Hz |
| Electric Installed Capacity: Approx.200kW | |
| Water Cooling | |
| Reservoir for High Frequency Equipment | 35 m³ |
| Reservoir for Circulating Cooling Water | 35 m³ |
| Compressed Air | |
| Pressure | 0.4MPa |
| Flow Rate | 0.8m³/hour |
| Line Speed: Max. 100m/min | |
| Overall Production Line Dimension: 65m X 6m (L X W) | |
