ET60 40 Industrial Borescopes Manufacturer

ET60 40 Industrial Borescopes

: http://videoscopesupplier.com/1-4-et60-40-industrial-borescopes.html

ET60/40(Easy Touch) industrial borescopes feature a direct/side dual camera system, which easily presents a side view where direct views are undetectable. The direct view and side view can be switched freely through the touch screen, giving users a comprehensive understanding of internal part conditions. This borescope is your best choice for situations where interiors are so small a direct lens will not directly detect part sides, which is why this borescope is most often used to observe welding seams inside parts, as well as the inspection of narrow, long pipes.

Features

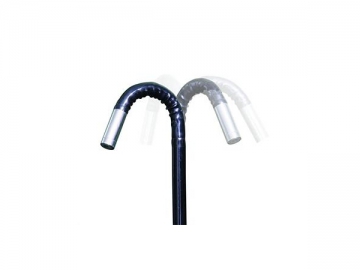

The angled motor is easy to control and features a 360° adjustment while supporting three modes in fast, slow, and hover. The bending process is completely silent, the control modes are either mechanical or motor controlled.

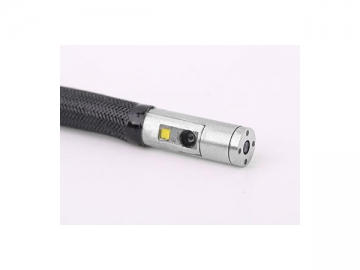

Dual camera with direct and side view supports 6.0mm/4.0mm specifications, as well as multi-light source switching, multi-image comparison, multi-mode bending control and other functions to meet your diverse detection requirements.

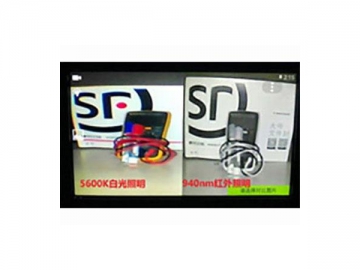

2. Infrared light/white light UV-light/ various types of light source lighting. 940nm infrared light ensures a clear night vision up to 10 meters away from the user’s body, while the 5600k white light is a vivid reduction of the color environment of your detection target; UV-light meets professional investigation needs.

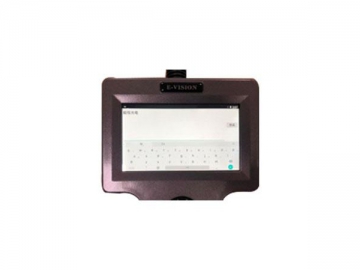

2. The touch screen allows users to freely switch the viewing angle and features a wider viewing field. Users can also customize the file name and picture name through the touch keyboard, which also supports multiple input modes.

ET60/40 SPECIFICATION

Probe	Pixel:	480,000 Pixel
	Diameter:	6.0mm / 4.3mm / 3.9mm
	FOV:	90°
	View Direction	Direct View/ Direct view + Side view Dual Camera
	Probe Length	1~8 meters with tungsten mesh
	Articulation	360°with Motor or Mechanical control
System	Displayer	5 Inch Touch Screen LCD (1920*1080)
	Memory	TF Card Support 8G~128G
	Output Interface	USB2.0/HDMI out/ Earphone out
	Power	2x26650 Li-battery/110~220V AC
	Wireless	WiFi/Bluetooth for Android
	Size	330148150 (LWH)
	Weight	1.2Kg (Include Battery)
	Waterproof	Probe: IP67
	Working Temperature	-10～50°
Software	Menu	Touch Screen control
	Image process	Image Zoom In & Out; Image Size & Color Editing; Image Contrast system; Image & Folder Rename
	Lightness	5 level LED/ Fiber light adjust (can support IR Light + White Light Dual Light Source) 5 level image brightness adjust
	Storage	Image/Video/Audio record
	Language	English/Chinese/French/Korean/German/Russian/Japanese/ etc.
