Tire Mold EDM Machine

: http://cncprocessfactory.com/sinker-edm.html

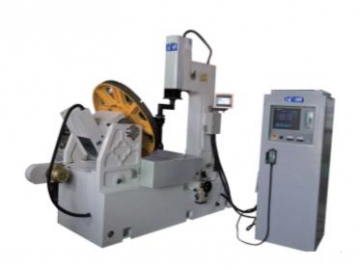

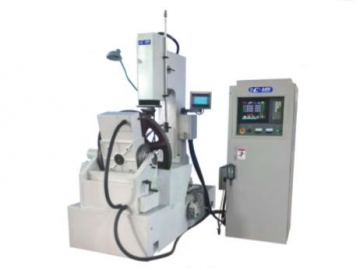

Wheel hubs need to be symmetrical to function properly, so the processing angle needs to be constantly and accurately adjusted during processing. Equipped with a rotary table, the tire mold EDM machine can rotate the angle to precisely machine the mold. Therefore, the tire mold EDM machine is ideal for processing wheel hubs and tire molds.

The controller of the C-TEK tire mold EDM machine is produced by C-TEK as well. As a result, the hardware and software of the machine operate with synergy. The equipment runs more stably and produces tire molds with greater precision compared to other machines.

Parameters

Model	Unit	TR-800	TR-900F	TR-1050F
Travel X/Y/Z	mm	400/550/60	700/460/180	700/490/180
Work head travel Z2	mm	-	480	480
Index diameter	mm	800	900	1050
Index segmentation accuracy	mm	0.015	0.008	0.008
Z axis rotation angle	°	0	±5	±5
Max.electrode weight	kg	600	20	20
Max.workpiece weight	kg	-	300	1500
Max.workpiece size	mm	800	900	1050
Max.workpiece thickness	mm	-	280	380
Cross weight	kg	2500	3000	3600
