Description
The addition of force measuring component in the YXI series permanent ground anchor differentiates it from the YX series. This allows the dispersion of internal stress in the anchor body meanwhile monitoring the internal force in each steel strand of the anchor. Furthermore, the bearing capacity of each anchor unit can be analyzed based on the measurements. The strain gauge is protected under the waterproofing state and this allows the intelligent anchor to possess great accuracy in force measurement and durable. At present, this kind of intelligent anchor can be manufactured at one time in the factory and the overall quality of the anchor is guaranteed.

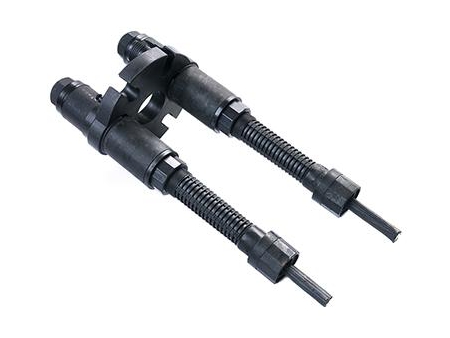

① Force measurement component included
② Data transmission by the wire

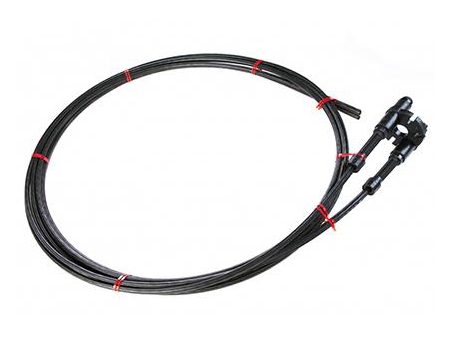

① Steel strand
② Wire

Application
  • Slope
  • Counteracting uplift forces structure
  • Fixation of bridge bearing platform
  • Tunnel and fixation of other permanent buildings
Parameters
  • Construction process:
  • Diameter of bearing plate: 205mm
  • Thickness of bearing plate: 20mm
  • Function type: permanent, real-time measuring of internal force
  • Corrosion resistance level: Ⅰ-level, allow usage in corrosive environment
  • Environmental friendly level: Environmental friendly PE, do not pollute the underground water
  • Suitable steel strand type:Φ15.2/Φ12.7
  • Suitable grouting pipe: not required
Features
  • Allow real-time monitoring on the bearing capacity of the anchor.
  • It has high accuracy as the internal force of each steel stand can be monitored and the bearing capacity of each anchor unit can be analyzed based on the measurements with accuracy greater than 95%.
  • Handled with SSPC-SP5 anti-corrosive treatment. All the steel cores adopt the injection molding process. The steel strands are made from national standard unbonded steel strands and the connecting part embedded with sealing strip that expands upon contacting with water
  • The product has reliable quality and is manufactured from a unified production line.
Frequently asked questions

Q1: What is jet grouting?
A: The jet grouting process mainly adopts an improvised high-pressure rotary spray method to form an anchoring section of the rotary spray underreamed anchor on the bottom plate of the anchor.

① Unbonded tendon with wire;
② Free segments;
③ Hot melt anchors;
④ Bearing plate;
⑤ Anchoring section;
⑥ Anchor;
⑦ Base plate

Q2: Is the intelligent force measurement of this product measuring each anchor?
A: The accuracy of the intelligent anchor measurement measures up to each steel strand.

Q3: How is the measured data observed?
A: Real-time observation can be made via mobile gadgets, computer and so on as the data is transmitted to the device via wireless transmission after on-site measuring.

Q4: How many cable structures can this product built up at most?
A: Using only this model, 6 cables can be built at most where the largest internal diameter of the anchor rod body is 205mm.

Q5: Is this product environmental friendly?
A: The materials used by the anchor consists of three types which is steel, wrapping layer of the steel strands covered in strong PE and PE. All these materials will not cause negative impact to the environment.

Q6: How well does this product resists to corrosion?
A: It is handled by SSPC—SP5 level anti-corrosive treatment.

Q7: What is the size of the casing used by this product?
A: This product adopts jet grouting process in construction instead of casing. For ground layer that is hard and direct advancement is not allowed, three-wings drilling bit is used to drill holes beforehand followed by jet grouting.
