Flexible UV LED Tape Light

Flexible UV LED Tape Light
Flexible UV LED Tape Light
Flexible UV LED Tape Light
Flexible UV LED Tape Light
Flexible UV LED Tape Light
Flexible UV LED Tape Light
Flexible UV LED Tape Light
  • LED type SMD5050
  • LED quantity 30pcs/m (9pcs/foot)
  • IP rating IP20
  • Light color Purple

Characteristics

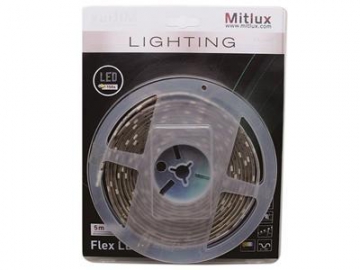

The flexible UV LED tape light includes a 5m LED strip, power adapter, 3M adhesive backing and silicone-made buckle.

  • With an IP rating of IP20, the LED tape light can prevents intrusion of general solid objects, it is non-waterproof yet, so it's only suitable for dry environments.
  • Flexible bare LED strip features smooth surface, high light transmittance and rapid heat dissipation.
  • Flexible FPC-made UV LED tape light can be curved flexible to various shapes for corner decoration.
  • The UV LED tape light has high brightness, with a color rendering index of over 80. It can even been used for counterfeit currency detection.
  • When the rated DC voltage is 12V, the maximum power will be 7.2W, environmental protection and energy saving.
Basic parameters
Strip light
Strip light voltage DC12V
Maximum voltage 7.2W
Light color Purple
Lumen 150LM
LED type SMD5050
LED quantity 30pcs/m
Beam angle 120°
Dimension 5000×10×0.2mm
Material FPC
Wavelength 395nm
IP mode No
IP rating IP20
Working temperature -20-50℃
Storage temperature -20-60℃
Inner package 5M/Roll
Warranty 2 years

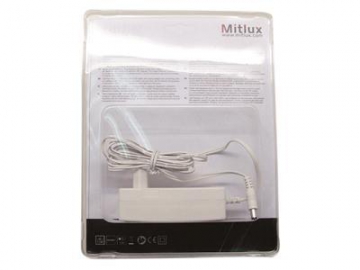

Power adapter
Input voltage AC100-240V
Input frequency 50/60 Hz
Output voltage DC12V(constant voltage)
Output current 2A(Max)
Output power 24W(Max)
Over voltage protection 15V(Max)
Environment temperature O-40℃、10%RH-90%RH
Storage temperature -20-60℃、5%RH-90%RH
Plug EU/US/AU/BS Etc.
Wire length 1.5M
Optional model
Model Output current of power adapter Output power of power adapter
IP20 MT-SK3M505024W-UV30 1A (Max) 12A (Max)
IP20 MT-SK5M505024W-UV30 2A (Max) 24A (Max)

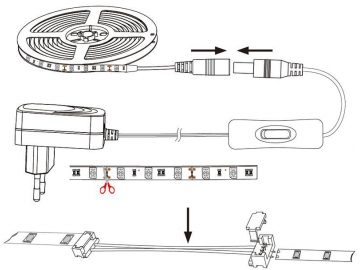

Installation
There is a 3M adhesive on back and you just need to tear off the protective paper and paste it on. We can cut the light strip into different length upon request.

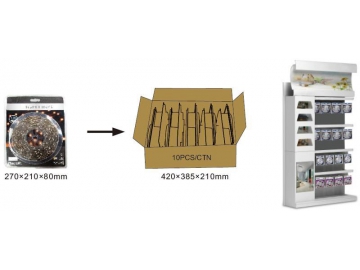

Package

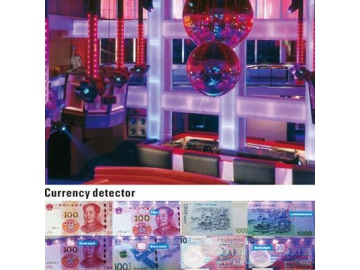

Applications
  • Billboards, lighting projects, house decoration or other lightings.
  • Ceilings, corridors windows or roadway decoration.
  • Applicable to ambience lighting in entertainment places, including bars, KTV and coffee house.
  • Entertainment places, beauty palor, Karaoke and fashion.
  • Inner commercial ambience lighting, including medium-high stores and department stores.
