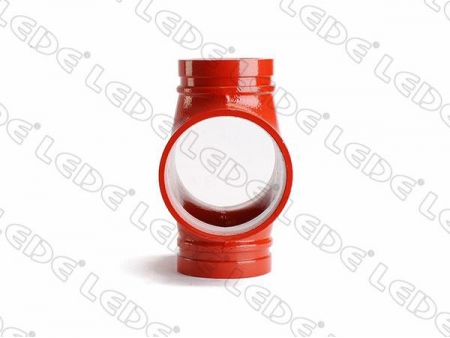

Grooved Reducing Cross Pipe Fittings

: http://lede-fittings.com/1-5-2-grooved-reducing-cross/index.html

Features
UL, FM listed and factory mutual approved for 300 PSI service.
Ductile iron per ASTM A536 standards
Dimensions conform to ANSI B 16.4 CLASS 125 standards
Threads are NPT per ANSI/ASME B1.20.1.

Dimension Drawing

Technical Data

Grooved Reducing Cross XGQT05
Nominal size mm/in	Pipe O.D mm/in	Dimensions				Working Pressure （ psi ）
		L(mm)		D	d
		L	L1	mm	mm
65× 32	73×42.4	76		73	42	300
21/2x11/4	2.875×1.669
65× 40	73×48.3	76		73	48
21/2x11/2	2.875×1.9
65× 50	73×60.3	76		73	60
21/2x2	2.875×2.375
65× 32	76.1× 42.4	76		76	42
21/2x1/4	3× 1.669
65× 40	76.1× 48.3	76		76	48
21/2x11/2	3× 1.9
65× 50	76.1×60.3	76		76	60
21/2x2	3×2.375
80× 32	88.9× 42.4	86		89	42
3x11/4	3.5× 1.669
80× 40	88.9× 48.3	86		89	48
3x11/2	3.5× 1.9
80×50	88.9×60.3	86		89	60
3×2	3.5×2.375
80×65	88.9×76.1	86		89	76
3x21/2	3.5×3
100×50	108×60.3	90	98*	108	60
4×2	4.25×2.375
100×65	108×76.1	90	98*	108	76
4x21/2	4.25×3
100×80	108×88.9	90	98*	108	89
4×3	4.25×3.5
100×32	114.3×42.4	90	98*	114	42
4x11/4	4.5×1.669
100×40	114.3×48.3	90	98*	114	48
4x11/2	4.5×1.9
100×50	114.3×60.3	90	98*	114	60
4×2	4.5×2.375
100×65	114.3×76.1	90	98*	114	76
4x21/2	4.5×3
100×80	114.3×88.9	90	98*	114	89
4×3	4.5×3.5
125×65	133×76.1	105		133	76
5x21/2	5.25×3
125×80	133×88.9	105		133	89
5×3	5.25×3.5
125×100	133×108	105		133	108
5×4	5.25×4.25
125×100	133×114.3	105		133	114
5×4	5.25×4.5
125×50	139.7×60.3	105		140	60
5×2	5.5×2.375
125×65	139.7×76.1	105		140	76
5x21/2	5.5×3
125×80	139.7×88.9	105		140	89
5×3	5.5×3.5
125×100	139.7×108	105		140	108
5×4	5.5×4.25
125×100	139.7×114.3	105		140	114
5×4	5.5×4.5
125×50	141.3×60.3	105		141	60
5×2	5.563×2.375
125×65	141.3×73	105		141	73
5x21/2	5.563×2.875
125×80	141.3×88.9	105		141	89
5×3	5.563×3.5
125×100	141.3×108	105		141	108
5×4	5.563×4.25
125×100	141.3×114.3	105		141	114
5×4	5.563×4.5
150×65	159×76.1	110	120*	159	76
6x21/2	6.25×3
150×80	159×88.9	110	120*	159	89
6×3	6.25×3.5
150×100	159×108	110	120*	159	108
6×4	6.25×4.25
150×100	159×114.3	110	120*	159	114
6×4	6.25×4.5
150×125	159×133	110	120*	159	133
6×5	6.25×5.25
150×50	165.1×60.3	110	120*	165	60
6×2	6.5×2.375
150×65	165.1×76.1	110	120*	165	76
6x21/2	6.5×3
150×80	165.1×88.9	110	120*	165	89
6×3	6.5×3.5
150×100	165.1×108	110	120*	165	108
6×4	6.5×4.25
150×100	165.1×114.3	110	120*	165	114
6×4	6.5×4.5
150×125	165.1×133	110	120*	165	133
6×5	6.5×5.25
150×125	165.1×139.7	110	120*	165	140
6×5	6.5×5.5
150×50	168.3×60.3	110	120*	168	60
6×2	6.625×2.375
150×65	168.3×76.1	110	120*	168	76
6x21/2	6.625×3
150×80	168.3×88.9	110	120*	168	89
6×3	6.625×3.5
150×100	168.3×108	110	120*	168	108
6×4	6.625×4.25
150×100	168.3×114.3	110	120*	168	114
6×4	6.625×4.5
150×125	168.3×133	110	120*	168	133
6×5	6.625×5.25
150×125	168.3×139.7	110	120*	168	140
6×5	6.625×5.5
200×65	219.1×76.1	146		219	76
8x21/2	8.625×3
200×80	219.1×88.9	146		219	89
8×3	8.625×3.5
200×100	219.1×108	146		219	108
8×4	8.625×4.25
200×100	219.1×114.3	146		219	114
8×4	8.625×4.5
200×125	219.1×133	146		219	133
8×5	8.625×5.25
200×125	219.1×139.7	146		219	140
8×5	8.625×5.5
200×150	219.1×159	146		219	159
8×6	8.625×6.25
200×150	219.1×165.1	146		219	165
8×6	8.625×6.5
