Wool Felt
Description
The wire tension wool felt is fitted on the tensioner, and is mainly used to realize the effect of decontamination and pre-tightening during winding.
Recommended application
The wire tension wool felt is suitable for places (tensioners) where the enameled wire of fully automatic winding machine passes needing cleaning and producing pretension.

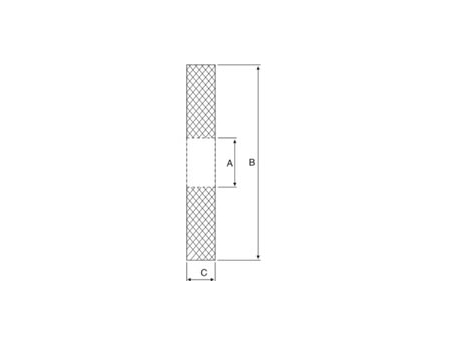

| Specification | A(Φ mm) | B(Φ mm) | C(Φ mm) |
| 1# | 3 | 20 | 4.5 |
| 2# | 3 | 25 | 5 |
| 3# | 4 | 20 | 2 |
| 4# | 4 | 20 | 3 |
| 5# | 5 | 20 | 3 |
| 6# | 5 | 20 | 3.5 |
| 7# | 5 | 20 | 4 |
| 8# | 5 | 20 | 5 |
| 9# | 5 | 25 | 4 |
| 10# | 10 | 20 | 5 |
| 11# | 10 | 28 | 5 |
| 12# | 10 | 28 | 6 |
| 13# | 10 | 30 | 2 |
| 14# | 10 | 30 | 3 |
Qianhe offers a variety of coil winding machine components, as a wire tensioner manufacturer and wire tension wool felt supplier, we mainly provide coil wire tensioner, pneumatic shear, as well as wire guide nozzles. Rich experience in coil winding, we are offering quality wire tension device for global customers.
