Request a Quote

Application

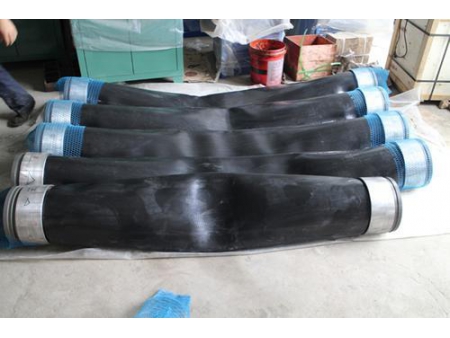

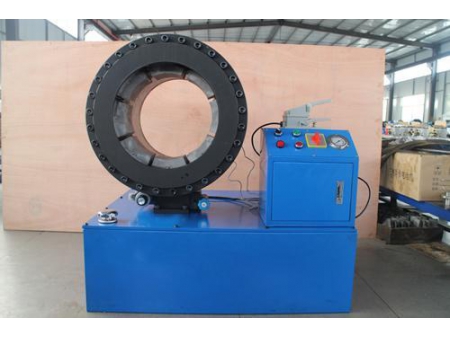

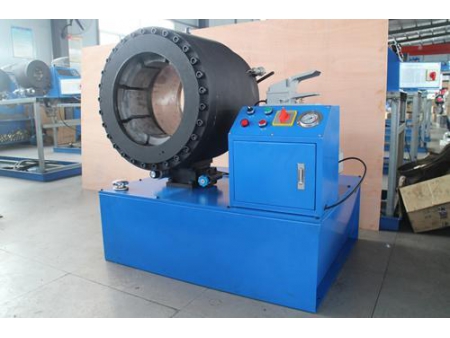

The crimp force of YONG-FENG F300 crimping machine for industrial hydraulic hose is 6000KN, with a crimp range of 51~280mm. Dies are customized according to clients' requirements. YONG-FENG F300 crimpers are widely used for crimping high-pressure fuel pipes and some low-pressure hoses.

Max. inner diameter
Industrial hoses: 10"
Hoses with 2 braided wires: 10"

Specification

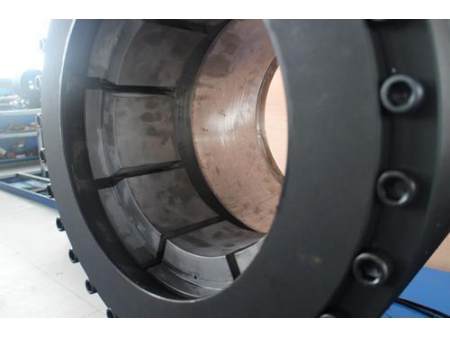

Crimp head material FORGE STEEL

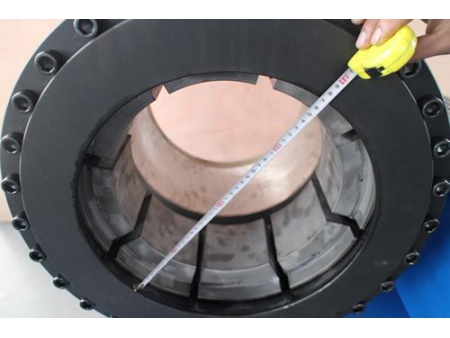

Crimp range 51-280mm
Hose size 10"
Passing diameter 300mm
Opening diameter 300mm
Opening +100mm
System pressure 31.5Mpa
Crimp force 6000kN
Drive 7.5kw
Standard voltage Customized
Control Full automatic
Standard dies Customized
Weight 800kg
L x W x H 1100*850*1100mm

Details

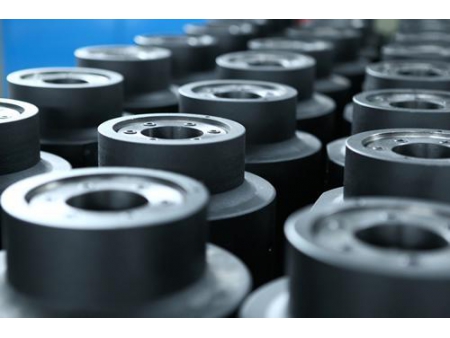

The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63.

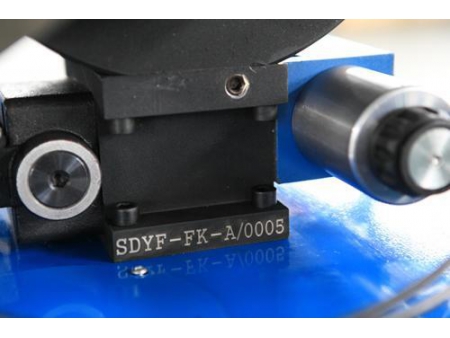

With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with little heat and stable pressure conduction, thus improving the overall performance.
