SMD 8.3mm Power Inductor

: http://inductorcn.com/1-5-4-smd-8-3mm-power-inductor.html

SMD 8.3mm power inductor has a maximum diameter of 8.3mm. With the adoption of flat coil structure and magnetic core allowing high saturation current, it ensures low copper loss.

Applications
Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, portable communication equipment, DC/DC converters, etc

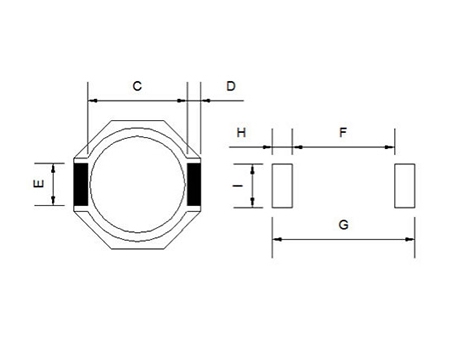

Shapes and Dimensions (Unit:mm)

Type	Amax	Bmax	C	D	E	F	G	H	I
CDRH83	8.30	3.0	5.90	1.20	2.50	6.10	10.10	2.00	2.80
CDRH84	8.30	4.0	5.90	1.20	2.50	6.10	10.10	2.00	2.80
CDRH85	8.30	4.5	5.90	1.20	2.50	6.10	10.10	2.00	2.80
CDRH86	8.30	6.0	5.90	1.20	2.50	6.10	10.10	2.00	2.80

Specification Table
Series: CDRH 83/84/85/86

Part Number	Inductance (uH)(※)	Tolerance	Rdc(ohm)Max	Rated Current Amp(※)
CDRH85	1.8	M	16.0m	5.15
CDRH84	2.2	M	20.0m	5.4
CDRH83/85	2.5	M	26.0/20.0m	4.13/5.0
CDRH83/85	3.3	M	32.5/22.0m	3.7/4.5
CDRH83/84/85/86	3.9	M	58.5/29/30/16.3m	3.0/4.3/4.0/4.1
CDRH83/85	4.7	M	62.0/33.0m	2.6/3.87
CDRH86	5.0	M	17.5m	3.8
CDRH86	6.2	M	20m	3.3
CDRH83/84/85	6.8	M	85/36/44m	2.5/3.0/3.1
CDRH83/84/85/86	10.0	M	91/49/69/25.6m	2.5/2.7/2.5/2.6
CDRH83/84/85/86	15.0	M	137/75/75/363m	1.61/2.3/2.35/2.3
CDRH83/84/85/86	22.0	M	195/109/82/453m	1.4/1.88/1.9/1.7
CDRH83/84/85/86	33.0	M	319/163/125/65.3m	1.16/1.52/1.62/1.50
CDRH83/84/85/86	47.0	M	423/211/176/90.5m	0.9/1.28/1.35/1.20
CDRH83/84/85/86	68.0	M	560/304/247/130m	0.75/1.10/1.20/1.0
CDRH83/84/85/86	100.0	M	793/416/377/175m	0.58/0.88/1.02/0.80
CDRH83/84/85	120.0	M	935/495/430m	0.51/0.83/0.90
CDRH83/84/85	150.0	M	1.09/0.60/0.52	0.47/0.78/0.83
CDRH83/84/85	180.0	M	1.65/0.78/0.63	0.42/0.70/0.78
CDRH83/84/85	220.0	M	1.82/0.91/0.79	0.4/0.64/0.69
CDRH84/85	270.0	M	1.1/0.96	0.55/0.62
CDRH85	330.0	M	1.23	0.54

※ The maximum rated current value is the DC current value that can meet the superimposed DC and temperature rise.

※ Inductance Test Fr. 100KHz 100mA(HP 4277A) at 20℃(L<10uH)

Inductance Test Fr. 1.0KHz 100mA(HP 4277A) at 20℃(L>10uH)

※ not all specifications are listed and you can contact us to customize the inductors not listed in the table.

Real Packing of SMT Inductor
Tape and Reel Dimensions (unit:mm)

Surface Mounting Type, Reel/Tape List

Packing Type	Reel Size(mm)				Tape Size(mm)									Q'ty, Pcs/reel
	A	B	G	N	E	F	D0	P	P0	P2	W	T	K0
LSMT-01	178	11	8.5	60	1.75	3.5	1.5	4	4	2	8	0.25	2.1	2000
2	178	15	12.5	60	1.75	5.5	1.5	8	4	2	12	0.3	1.7	1000
3	178	15	12.5	60	1.75	5.5	1.5	8	4	2	12	0.3	2.1	1000
4	330	17	12.5	100	1.75	5.5	1.5	8	4	2	12	0.35	3	2000
5	330	17	12.5	100	1.75	5.5	1.5	8	4	2	12	0.35	2.4	2000
6	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.35	5.5	2000
7	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.3	3.5	1500
8	330	21	16.5	100	1.75	11.5	1.5	12	4	2	24	0.4	5.9	1000
9	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.3	4	1000
10	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	4.2	1000
11	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	4.8	500
12	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	5.2	500
13	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	6	500
14	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.3	8.2	500
