EMA05 2 Flute Ball Nose End Mill, 37°Helix, Regular Length

EMA05 2 Flute Ball Nose End Mill, 37°Helix, Regular Length
EMA05 2 Flute Ball Nose End Mill, 37°Helix, Regular Length
EMA05 2 Flute Ball Nose End Mill, 37°Helix, Regular Length
: http://metalworking-tool.com/1-5-ema05-2-flute-ball-nose-end-mill.html
  • Specially designed to cut prehardened steel, carbon steel, alloy steel up to HRC56
  • Also suitable for machining stainless steel, titanium, inconel, and other high temperature alloys
  • 4D flute, variable helix design (Approx. 37°) for improved slotting and roughing
  • Oerlikon Balzers coating offers superior hardness and high performance
  • Cutter Dia. down to 0.01mm
  • Used for profile milling and slotting
  • Chamfer design for easy installation

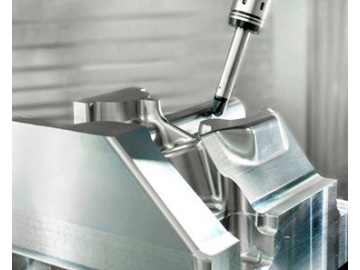

Application
Product Specifications
Coating AITiN /TiALN /TiAISiN
AITiSiN 		HRC HRC46/56
Helix Angle 35°/36°/37° Shank Cylindrical H6
Material IMC™ UMG Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide, 2 Flute Ball Nose End Mill - Regular Length, for Copy Milling (UNT-EMA05)
UNT EDP # Click to Order Radius
R 		Mill Dia.
D1 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EMA050103 R0.5 1.0 3 2 50 2
EMA050153 R0.75 1.5 3 3 50 2
EMA050203 R1.0 2.0 3 4 50 2
EMA050303 R1.5 3.0 3 6 50 2
EMA050104 R0.5 1.0 4 2 50 2
EMA050154 R0.75 1.5 4 3 50 2
EMA050204 R1.0 2.0 4 4 50 2
EMA050254 R1.25 2.5 4 5 50 2
EMA050304 R1.5 3.0 4 6 50 2
EMA050404 R2.0 4.0 4 8 50 2
EMA050106 R0.5 1.0 6 2 50 2
EMA050156 R0.75 1.5 6 3 50 2
EMA050206 R1.0 2.0 6 4 50 2
EMA050256 R1.25 2.5 6 5 50 2
EMA050306 R1.5 3.0 6 6 50 2
EMA050406 R2.0 4.0 6 8 50 2
EMA050500 R2.5 5.0 6 10 50 2
EMA050600 R3.0 6.0 6 12 50 2
EMA050700 R3.5 7.0 8 14 60 2
EMA050800 R4.0 8.0 8 16 60 2
EMA051000 R5.0 10.0 10 20 75 2
EMA051200 R6.0 12.0 12 24 75 2
EMA051600 R8.0 16.0 16 32 100 2
EMA052000 R10.0 20.0 20 40 100 2

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
