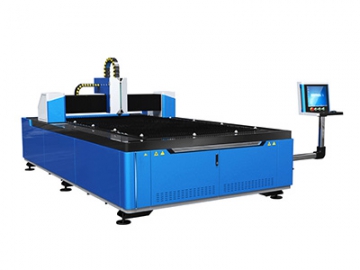

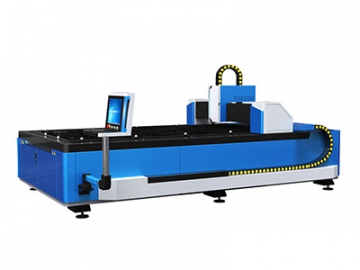

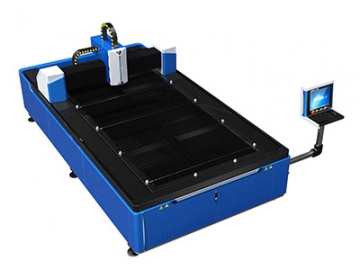

Key Parameters
1. Working table: Sawtooth table
2. Maximum idle running speed: 130m/min
3. Fiber laser source: Raycus/IPG
4. Fiber laser cutting head: Raytools/WSX

Technical Specifications:

Model	PS3015	PS4015	PS4020	PS6020
Working area	3000*1500mm	4000*1500mm	4000*2000mm	6000*2000mm
Laser power	500W 800W	1000W 1500W	2000W 3000W	4000W 6000W
Laser wavelength	1064nm
Working table	Sawtooth table
Maximum idle running speed	1200mm/s
Positioning accuracy	±0.05mm/m
Positioning speed	20m/min
Minimum line width	±0.02mm
Cutting thickness	≤24mm
Control system	Cypcut
Positioning method	Red dot
Power consumption	≤12kW
Power supply	380V/50Hz
Auxiliary gas	Oxygen, nitrogen, air
Service life of fiber module	More than 100,000 hours
Fiber laser cutting head	Lasermech made in USA
Focus lens	Lasermech made in USA
Drive system	1500W Fuji servo motor made in Japan
Linear guide	PMI made in Taiwan (option THK made in Japan)
Transmission system	Dual rack and pinion motion system
Rack system	made in Germany
Energy chain system	IGUS made in Germany
Warranty	3 years

Components:

Cast Aluminum Beam
Corrosion resistant, anti-oxidant, Light weight,high cutting speed, smooth and flat edges

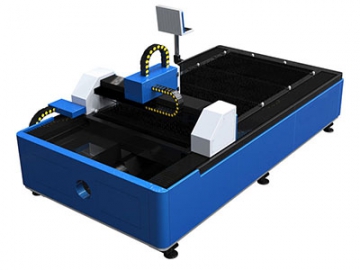

Machine Bed
High temperature annealing, high ductility,stable cutting

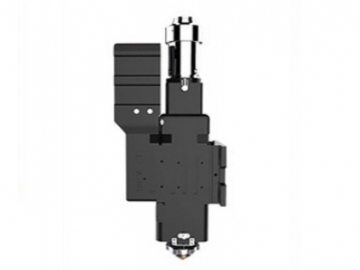

Autofocus Laser Head
Flexible focusing,automatic cut various thickness of plates.

Cutting Capacity:

Laser Power
1. 0mm
2. 3mm
3. 6mm
4. 9mm
5. 12mm
6. 15mm
7. 18mm
8. 21mm

500W

Stainless Steel

Carbon Steel

Aluminum

Brass

Iron

800W

Stainless Steel

Carbon Steel

Aluminum

Brass

Iron

1000W

Stainless Steel

Carbon Steel

Aluminum

Brass

Iron

1500W

Stainless Steel

Carbon Steel

Aluminum

Brass

Iron

2000W

Stainless Steel

Carbon Steel

Aluminum

Brass

Iron

3000W

Stainless Steel

Carbon Steel

Aluminum

Brass

Iron

4000W

Stainless Steel

Carbon Steel

Aluminum

Brass

Iron

6000W

Stainless Steel

Carbon Steel

Aluminum

Brass

Iron

Quality Control:

Strict parts screening to ensure every detail
Quality assurance during assembly process, ensure the error within a reasonable range
Modify parameters, compensate data to ensure normal parameters

Features:

Acceleration speed: 19.6m/s2 (2G)
Maximum simultaneous positioning speed: 160m/min
Precision: ±0.05mm
Energy efficiency with great reduction of power consumption
Excellent cutting quality for small and medium thickness metal sheets
IPG resonator: power output from 1kW to 6kW
Precitec cutting head with power output of 3kW
Precitec HP cutting head for power output over 3kW
Effective gas exchange system from high to low pressure
Capacitive sensor, high pressure cutting head
ECO cutting parameter table
Pre-cut protective film
Power output control function for automatically mechanical nesting (corners, lead-ins)
Automatic time and cost calculation for pieces
Network connection via external PC
Automatic table exchanger (included in the models of this series)
Smoke extraction system (included in the models of this series)
3-point reference sensor (sheet metal rotation detection)
Piercing sensor (detecting the completion of piercing)
Collection of work pieces and trimmings
Dual proportional valve control system for different gas pressures and special system for high pressure cutting

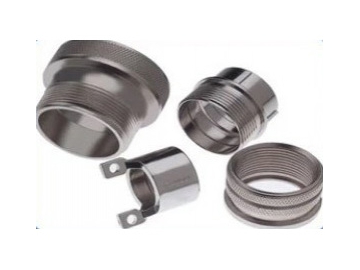

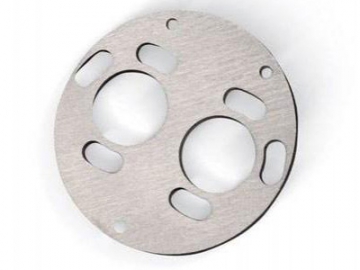

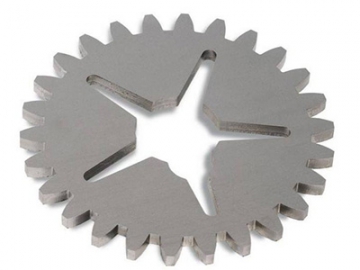

Sample Display:
