6t Electric Tow Tractor
6t Electric Tow Tractor
6t electric tow tractor is a compact body featuring small turning radius and excellent motor, equipped with a reduction gearbox. Inching switch increases working efficiency.

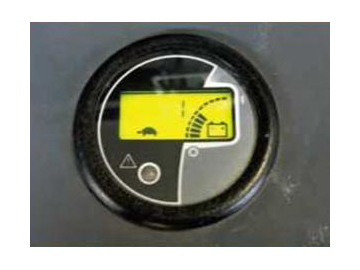

Details- Multi-function liquid crystal instrument
Good-looking liquid crystal instrument is versatile, efficient and reliable. - Hood

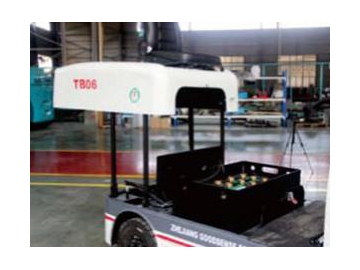

Hood with gas spring can be wide open, convenient for maintenance and repair.
| Characteristic | ||
| Model | TB06 | |
| Power Type | Battery | |
| Operator Type | Seated | |
| Rated Capacity | kg | 6000 |
| Rated Drawbar Pull | N | 1600 |
| Wheelbase | mm | 1100 |
| Service Weight | kg | 1150 |

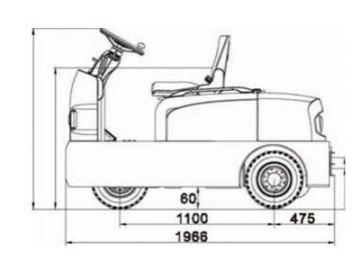

| Dimension | ||
| Overall Length | mm | 1966 |
| Overall Width | mm | 1010 |
| Overall Height | mm | 1300 |
| Ground Clearance | mm | 60 |

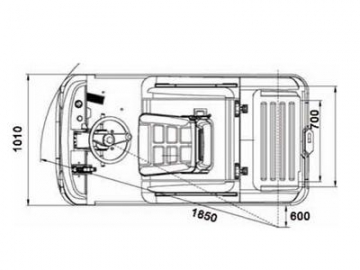

| Turning Radius | mm | 1850 |
| Tyres | ||
| Tires | Solid tire | |
| Tire Size (Front) | mm | 4.00-8 |
| Tire Size(Rear) | mm | 4.00-8 |
| Number of wheels Front/Rear(x=driven wheels) | 1/2x | |
| Tread Rear | mm | 820 |
| Performance | ||
| Travel (Loaded/Unloaded) Speed | km/h | 9.5/10.5 |
| Max. Drawbar Pull | N | 6500 |
| Service Brake | Electromagnetic + Hydraulic | |
| Electric Motor | ||
| Drive Motor Rating S2 60mln | kW | 6 (AC) |
| Battery acc. to DIN 43531/35/36 A，B, C, no | DIN | |
| Battery Voltage, Nominal Capacity K5 | V/Ah | 48/275 |
| Battery Weight | kg | 540 |
| Additional Data | ||
| Type of Drive Controller | MOSFET | |
| Sound level at driver's ear acc. to EN 12053 | dB（A) | < 70 |
