Cavaran and Motorhome Combined Air & Water Heater, AWH series Manufacturer

Cavaran and Motorhome Combined Air & Water Heater, AWH series

: http://auto-airconditioner.com/1-6-1-rv-parking-air-water-integrated-heater.html

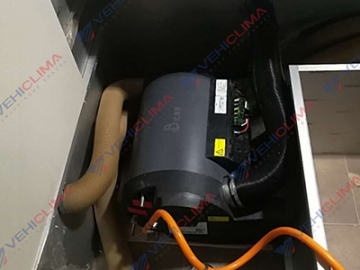

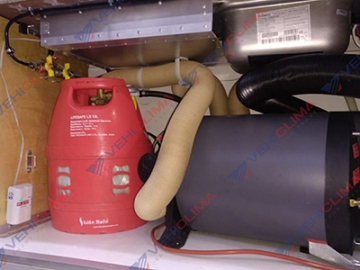

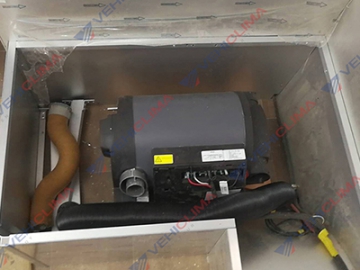

AWH series heaters are specially designed for RVs, which combine cab air heater function and living water heater function as one integrated machine.

As an ISO9000 certified corporation, our AWH series heaters have approved CE certification and E-mark certification.

Now, you can enjoy your RV travelling with warm air and 24-hours available living hot water using your VEHICLIMA air and water combined heater.

Features & Benefits of AWH Series Heaters

Use one heater to supply warm air and living hot water in the RVs, save installation space.
Operate more economically: LPG, Gasoline and Diesel Fuel versions are available.
AC electric source (220V/50Hz and/or 115V/60Hz) is combined.
Distribute the warm air to the right places desired through 4 air channels.
Anti-freezing security water valve adopted, water would be drained out automatically when ambient temperature decreases down to 3 /-1C.
Can work with RV air conditioning as a combined system, shift operation of A/C and heater automatically according to vehicle interior temperature.
Drain and ventilation valves ensure fresh air in RV cab and water gets out timely.
Intelligent self-manage highland function mode, never worry the heater does not work in highland regions.

Technical Parameter

Model		AWH-L6	AWH-G4	AWH-D4
Energy Source		LPG/Propane/Butane electricity	Gasoline electricity	Diesel electricity
Rated Operate Voltage	V	12	12	12
Operating Voltage Range	V	10.5~16	10.5~16	10.5~16
Max. Power Consumption at 12V: Heating Water Container	A	5.6 (max)	8~10 (max)	8~10 (max)
On Average Power Consumption at 12V: Operation of Heater and Water Container	A	1.3	1.8 ~ 4	1.8 ~ 4
Rated Heat Output in Fuel Mode	w	2000/4000/6000	2000/4000	2000/4000
Fuel Consumption	ml/h	160/320/480 (g)	510~550	240~270
Operating Pressure	mbar	30 mbar LPG gas	-	-
Max Warm Air Flow Rate (Free Blowing) with 4 Air Outlets	m³/h	287	287	287
AC Electric Source		220V-50Hz/110V-60Hz	220V-50Hz/110V-60Hz	220V-50Hz/110V-60Hz
Rated Heat Output in AC Electric Mode	w	900/1800	900/1800	-900/1800
Power Consumption in AC Electric Mode	A	3.9 /7.8 7.8/15.6	3.9 /7.8 7.8/15.6	3.9 /7.8 7.8/15.6
Rated Heat Output in Mix Mode	w	7800 (max)	5800 (max)	5800 (max)
Water Capacity	Liter	10	10	10
Pump Pressure	MPa	0.35	0.35	0.35
System Pressure	Mpa	0.35	0.35	0.35
Ambient Temperature	C	-20~40C	-20~40C	-20~40C
Working Altitude	m	<=5000m	<=5000m	<=5000m
Weight	kg	15.6	15.6	15.6
Dimension	mm	510 x 450 x 300	510 x 450 x 300	510 x 450 x 300
