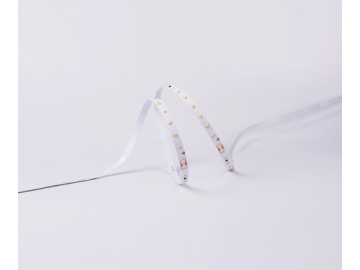

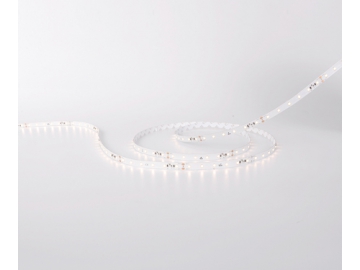

DS860 24V 10mm Outdoor LED Light Strip 4.3W
Features
- The maximum length of light strip with single-ended power supply is 30m, and the brightness is consistent at the beginning and the end;
- The packaging operation is completed by our company, 1900-6000K, 8 color temperatures are available;
- Lifetime is greater than 36,000 hours.
Basic Parameters
| Size | 30000×10×1.7mm(98.43´×0.39〞×0.07〞) |
| Cutting unit | 10LEDs/167mm |
| Input voltage | 24VDC |
| Input current | 0.18A/1m&8.4A/30m |
| Topical power | 4.3W/m(1.3W/FT) |
| Max.power | 4.6W/m(1.4W/FT) |
| Bend diameter | >60mm(2.36inch) |
| Copper foil | 4oz |
Photo-electric parameters
| Color rendering index | Color temperature | Lumens (m) | Lumens (w) | Energy efficiency rating |
| >80 | 1900K | 325 | 72 | A+ |
| 2300K | 358 | 83 | A+ | |
| 2700K | 381 | 89 | A+ | |
| 3000K | 385 | 90 | A+ | |
| 3500K | 390 | 91 | A+ | |
| 4000K | 400 | 93 | A+ | |
| 5000K | 400 | 93 | A+ | |
| 6000K | 385 | 90 | A+ | |
| >95 | 2700K | 271 | 63 | A+ |
| 3000K | 296 | 69 | A+ | |
| 3500K | 325 | 76 | A+ | |
| 4000K | 325 | 76 | A+ | |
| FS | 2700K | 213 | 50 | A |
| 3000K | 223 | 53 | A | |
| 4000K | 253 | 59 | A | |
| 6000k | 283 | 66 | A+ |
