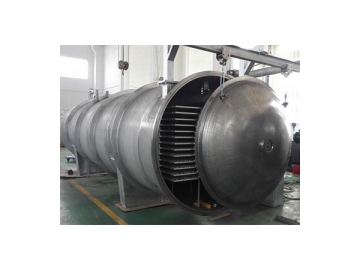

BLK500kg Industrial Lyophilization Freeze Dryer
Application
The BLK500kg industrial lyophilization freeze dryer capacity is 500kg, with an effective freeze-drying area is 50m2. It is applicable to the freeze drying of produce, flowers, medicines, bio-products, chemicals and liquid food.
We can customize the capacity and configuration of the BLK500kg industrial lyophilization freeze dryer.
Freeze dried flowers and vegetables
Parameters
| Model | BLK500kg |
| Shape and Size | Circular 2400*7500mm |
| Installed Power | 90KW- actual usage generally ranges between 60 to 80% of the full power, i.e, 54 – 70kW. |
| Tray's Area | 50.5m2 |
| Shelf | 36 |

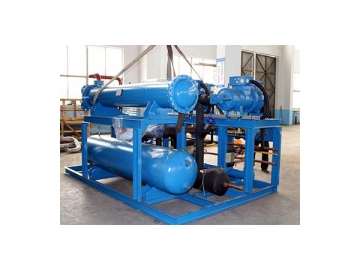

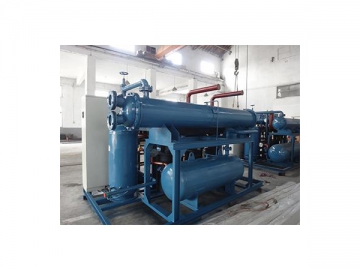

| Cold Trap Temperature | -40℃~-60℃ |

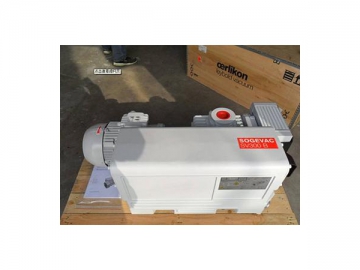

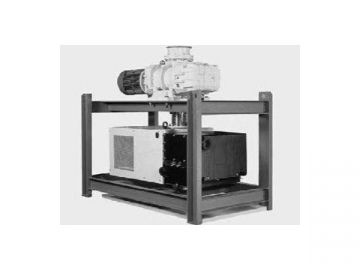

| Vacuum Degree | ≥15Pa |
| Heating way | Steam or Electric heating |
| Capacity | 500KG |
* Not only do we offer the above models, but we can customize the freeze dryers to have a 0.5m2-200m2 effective freeze-drying area based on customer requirements.
Features
- Different from traditional drying equipment that requires an additional quick freeze machine or cold storage, this freeze dryer completes both freezing and drying.
- It saves anywhere between 20 and 30% of energy when compared to other similar products available on the market today.
- High automation degree: a single operator can operate multiple devices, saving labor costs.
- Various fault alarms ensure operation is more stable and safe.
- The waste heat recovery system developed in house is used, saving operation costs.
Details

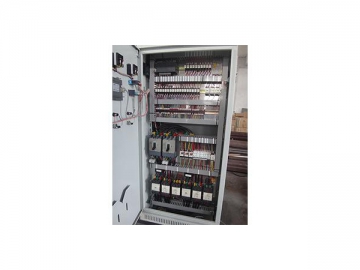

- SIEMENS, Schneider electrical components and PLC automatic control are used. All are controlled by a touch screen or computer, and are easy to operate.
- All devices can be controlled manually and automatically on screen.
- Display, store and viewing of a variety of temperatures, vacuum degree and corresponding curves, all simultaneously.
Index
freeze dryer, lyophilizer, freeze preservation dyer, commercial dryer, industrial freeze dryer
