ER 3103 (AlMn1) Aluminium Welding Wire

Request a Quote

Website: http://weldingwire-en.com/1-6-aluminium-welding-wire-er-3103.html

Welding Consumables

Aluminium-manganese filler metal for MIG and TIG welding of aluminium alloyed with manganese

Chemical Designation: AlMn1
Standard: AWS A5.10, GB/T10858-2023

Chemical Composition (%)

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti Zr	Al	Be	Others
										Each	Total
≤0.50	≤0.7	≤0.10	0.9-1.5	≤0.30	≤0.10	≤0.20	≤0.10	Rest	≤0.0003	≤0.05	≤0.15

Mechanical Properties

Tensile Strength Rm (MPa): ≥90
Offset Yield (MPa): ≥35
Elongation (%): ≥24

Features

Offers excellent corrosion resistance and higher strength than pure aluminium, making it suitable for structural and formable parts
Produces clean, bright welds with stable arc performance and minimal spatter during both MIG and TIG processes
Provides outstanding plasticity and weldability, ensuring smooth operation and consistent results even in demanding welding environments

Available Sizes

Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)

Applications

Designed for welding components that operate in liquid or gas environments and require good plasticity and weldability
Commonly used for fuel tanks, gasoline or lubrication pipes, and a variety of liquid containers
Also suitable for lightweight parts made through deep drawing processes where high formability is needed

Packaging

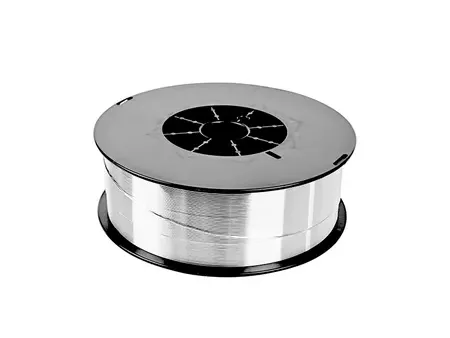

Spooled welding wire
Drum packaged welding wire
Straight welding wire
Coiled welding wire

MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Package: D300 (9kg/spool), D270 (7kg/spool)

MIG wire diameter: 1.2mm, 1.6mm
Package: drum D660 (100kg/drum, 80kg/drum)

TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (10kg/box)

TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Recommended Welding Method

This type of welding wire can be used with both MIG and TIG welding techniques. AC TIG welding with pure argon shielding gas is preferred for optimal arc stability. To ensure clean results, it's important to thoroughly clean the welding area before welding and keep both the workpiece and welding wire free from moisture or contaminants.
