Aluminum Tees

: http://rh-aluextrusions.com/1-6-aluminum-tees.html

With the experience of producing over 100 thousands aluminum extrusions, RH Group houses an extensive standard shapes die bank for mass production, thus to lower tooling costs. Being an aluminum extrusion manufacturer, RH Group can produce aluminum alloy rods in 2000, 3000, 4000,5000, 6000 and 7000 series, and deliver customized surface treatment and finishing service for our aluminum extrusions used in different applications, such as architecture, industry, electronics.

Quantity of dies: 111sets
CCD (circumscribing circle diameter): ≤250mm

Specifications

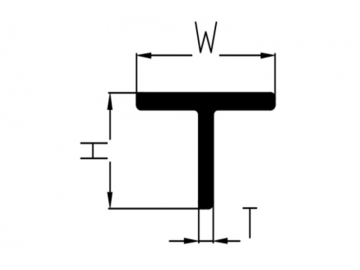

No.	Part Number	Width mm	Height mm	Wall Thickness mm	Weight kg/m
1	RH1320-004	47.3	63.2	17.1/7.1	3.63
2	RH1579-003	19.5	10	2	0.15
3	RH239-085	17	28.2	5/2.9	0.5
4	RH340-041	78.2	68.5	37/21.4	9.56
5	RH554-118	36	31.5	12.5/7	1.56
6	RH554-068	15	6	7/3	0.18
7	RH534-201	31.2	30.2	13.2/11.2	1.68
8	RH148-048	65	80	12/10	4.20
9	RH148-104	125.15	40	32/6.56	6.33
10	RH1635-003	38	33.5	14.5/9	1.95
Customized aluminum tees are available.
