Flexible LED Screen, Flexible LED Modules Manufacturer

Flexible LED Screen, Flexible LED Modules

: http://qcledlighting.com/1-4-flexible-led-strip-light.html

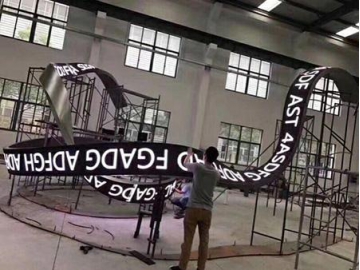

Flexible LED screen is different from the traditional LED display. It can be divided into the arc, tunnel-type, cylindrical and other shapes, so the flexible LED display is trouble-free installation and brings infinity to the designers or architects. To ensure that the products are delivered to the customer with the best stability, Haian flexible LED screens passes 10,000 bending and folding tests before delivery.

Features:

LED module using flexible materials to make circuit boards can be arbitrarily bent and seamless, no angle.
The use of magnetic installation module, which can be directly adsorbed on the steel structure, so that installation and maintenance are very easy.
Applying high-quality LEDs, stable performance, good color consistency.
Adopting a high refresh rate of the drive IC, the LED screen delivers clear and vivid image.

Parameters:

Model	P2	P2.5	P3	P4
Pixel Pitch	2mm	2.5mm	3mm	4mm
Pixel Configuration	SMD 1R1G1B	SMD 1R1G1B	SMD 1R1G1B	SMD 1R1G1B
LED Type	1515	2020	2020	2020
Pixel Per SQM	250,000 dots	160,000 dots	111,111 dots	62,500 dots
Module Size	240x120mm	240x120mm	240x120mm	256x128mm
Module Resolution	120x60 dots	96x48 dots	80x40 dots	64x32 dots
Brightness	1200cd/m2	1200cd/m2	1200cd/m2	1200cd/m2
Viewing Angle	2m	2.5m	3m	4m
Gray Scale	65,536	65,536	65,536	65,536
Refresh Rate	1920 Hz	1920 Hz	1920 Hz	1920 Hz
Input Voltage (AC)	100v - 240v	100v - 240v	100v - 240v	100v - 240v
Input power frequency	50 or 60 Hz	50 or 60 Hz	50 or 60 Hz	50 or 60 Hz
LED Blind Spot Rate	1/10,000	1/10,000	1/10,000	1/10,000
Lifetime	100,000 hours	100,000 hours	100,000 hours	100,000 hours
Operating Temperature	-25 ~ 40 ℃	-25 ~ 40 ℃	-25 ~ 40 ℃	-25 ~ 40 ℃
Operating Humidity	10% - 90%	10% - 90%	10% - 90%	10% - 90%
Protection Rate	IP31	IP31	IP31	IP31
Warranty	3 years	3 years	3 years	3 years
