4K Mini DisplayPort to DisplayPort Cable, Thunderbolt Cable
Application
Interface: one side is male Mini DP connector and another side is male DP connector;
Support: 4K 60HZ，2K 144HZ，2K 165HZ，G-SYNC，freesync
Parameters
- Cable length: 1m-3m
- Connector: copper shell plated with 24K gold
- Conductor: 4N oxygen-free copper with high purity, 32AWG
- Cable diameter: 2.0*9.0mm
- Cable material: PVC

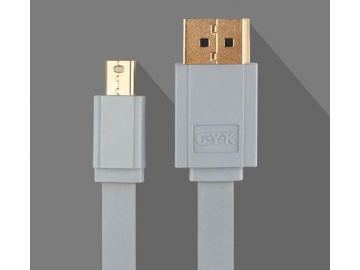

Details of the connector
Characteristics
- Data rate of each signal channel of the connecting cable is 5.4 Gbase-t. And the total bandwidth of the signal channel is as high as 21.6GBPS;
- The cable is designed to be flat for easy wiring and less space inhabitance. The outer weave is soft, durable, and bend resistant.
- Cable material is environmentally friendly and non-toxic;
- Signals are separated before transmission. In this way, information can transmitted with less interference, less EMI and higher speed.
- The gold-plated plug is oxidation resistance. It also has high transmission capacity.
- The connecting cable is designed with dust cover. It is plug and play and can transmits stably;
- Impedance of the conductor is low, so transmission capacity of the cable is promoted. The jacket of the cable body is made of injection plastic, so it is durable;
- The core of the connecting cable is made by multi-strand oxygen-free copper and welded by hand. It can transmit with high stability.

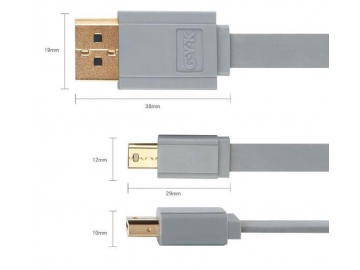

Details of the DP cable
