ZW Water Air Solenoid Valve Manufacturer

ZW Water Air Solenoid Valve

: http://solenoidvalvecn.com

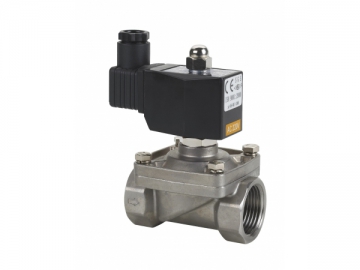

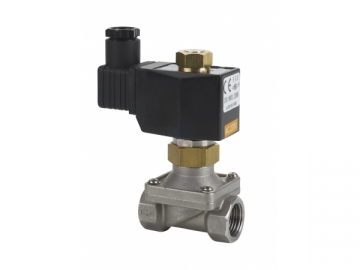

ZW Water Air Solenoid Valve, G3/8"~G2"

Features
1. The ZW water air solenoid valve is a valve foruse withthe water, liquid, gas, oil, tartish and alkalimaterials.
2. The temperature of the medium is between -5 and 80℃.
3. The acting pattern:directstep by step.
4. Working pressure normally closed: 0-8bar, normally open: 0-6bar.
5. The ZW water airsolenoid valve is made with forged brass or precision casting stainlesssteel.
6. It is sealed by the NBR membrane.
7. Protection degree of the coils encapsulatecoil: IP65, ironclad coil: IP54.

SpecialOrders
We also offer the solenoidvalve with special specifications.
1. If you order the solenoid valve with the VITON membrane, you should mark a V on the order form. This valve is foruse with mediums at maximum temperature of 130℃.
3. If you prefer the EPDMmembrane, then mark an E on the order form. This valve is for use with mediums at maximumtemperature of 110℃.
4. We offer flanged joints. Simplymark it out on the order form if you need them.

Technical Parameters of the ZW WaterAir Solenoid Valve (Normally Closed)

Model		ZW-10		ZW-15	ZW-20	ZW-25	ZW-32	ZW-40	ZW-50
Screw thread G		3/8"		1/2"	3/4"	1"	1¼"	1½"	2"
Diameter	mm	15		15	20	25	32	40	50
Cv		2.20		4.8	7.6	12	24	29	48
L	mm	60	60		62	82	102	110	134
H	mm	111	111		117	124	156	161	176
Temperature of the medium		-5 ~80℃ (-10~130℃)
Working pressure	Bar	Normally closed:0~8; normally open:0~6
Voltage		220VAC/50HZ 22VA; 110VAC/50HZ 22VA; DC24 18W; DC12 17W; voltage range: ±10%, Solenoid valve in other voltage range can be made to order.

YUYAO NO.4INSTRUMENT FACTORY is a major manufacturer of water air solenoid valve, basedin China. We offer various types of products such aswater air solenoid valve, liquid solenoid valve, liquidmini solenoid valve and so on. Ourproducts are high quality and competitively priced. We can complete the full chain of manufacturing plasticsolenoid valve, steam solenoid valve, etc. right here in China. Our lower manufacturing cost can save yourpurchasing cost. A more detaileddescription of our product is shown on the page.
