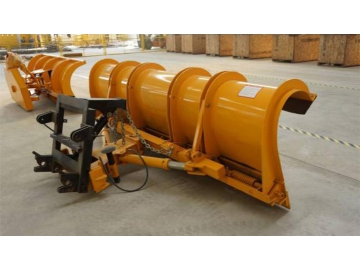

Front Truck Snow Plow Blade

Front Truck Snow Plow Blade
Front Truck Snow Plow Blade
Front Truck Snow Plow Blade

Application
Front truck snow plow blade is an essential snow removal equipment in highway, airport and city road, which can be suitable for all kinds of road conditions.

Technical parameter
Model HQ300KT
Width of plow blade 3000mm
Height of plow blade 1070mm
Left and right deflection angle ±30°
Clearing width in 30° 2640mm
Max working speed 60km/h
Weight 1000Kg
Thickness of plow blade 18mm*165mm
Automatic balance Angle ±8°
Height of obstacle avoidance 260mm
Operation method wired remote control in cab

Feature
1. The lifting and swing of snow plow blade is drive by hydraulic power system and the power of hydraulic station is 2KW.
2. All mechanism is designed with safety limit device to prevent destroy caused by overloading.
3. The arc hood of snow plow adopts whole welding of steel sheet with the thickness of 5mm and it can also achieve pavement profile automatically.
4. The surface of steel plow blade is coated with high quality anticorrosion materials and is also equipped with warning bar with double-side reflective effect.
5. The assembly of snow plow blade and chassis can be finished in very short time.
6. We adopt independent lighting system in the snow plow blade with turn light and width lamp.
7. We adopt wired remote control system and you can operate the machine in the cab conveniently.
8. The plow blade and chute is made from 16Mn steel, which is a kind of high-strength low-alloy steel and is easy to weld and has good corrosion resistance and long service life.
9. The plow blade and chute adopts bolted connection, which is very convenient for assembly.
10. The snow plow blade is made from NM400 wear proof alloy steel with medium frequency quenching treatment to ensure the high quality of blade.

Huiqiang design and manufacture a wide range of snow removal equipment and truck, we are a reliable front truck snow plow blade manufacturer and supplier, offering snow plow, snow blower, salt spreaders, deicing equipment and other snow plow attachments for winter road treatment. With continuous research and development, Huiqiang offers quality truck snow plow blade with competitive price.
