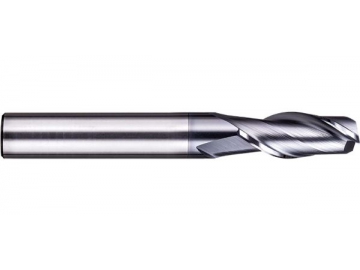

S-SS4 Solid Carbide End Mill for Stainless Steel Machining - Square End - 4 Flutes - Short Flute
Request a quote
Unit: mm
| Order Code | Cutting Diameter (D) | Length of Cut (Lc) | Overall Length (L) | Shank Diameter (d) | Type |
S-SS4-02004 | 2 | 4 | 50 | 4 | A |
S-SS4-03004 | 3 | 4 | 50 | 4 | A |
S-SS4-04006 | 4 | 6 | 50 | 4 | B |
S-SS4-05008 | 5 | 8 | 50 | 6 | A |
S-SS4-06009 | 6 | 9 | 50 | 6 | B |
S-SS4-08010 | 8 | 10 | 60 | 8 | B |
S-SS4-10012 | 10 | 12 | 75 | 10 | B |
Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
