EMA09 4 Flute Corner Radius End Mill, Regular Length
- Special 4~6 flutes design provides small chip loads, higher metal removal rates and better surface finish on the workpieces
- Results in excellent performance when cutting prehardened steels up to HRc56
- Used for machining molds & dies
- Fit for milling from roughing to finishing at one time, with reduced tool changing times
- Oerlikon Balzers coating and tool geometry provide outstanding cutting ability and wear resistance

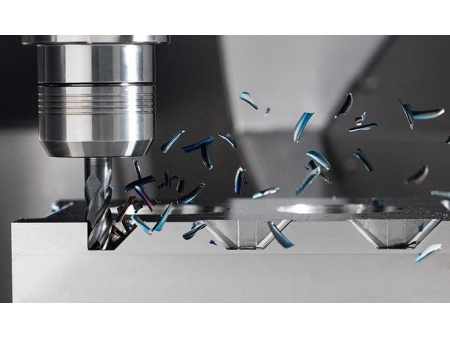

Application
Product Specifications
| Coating | AITiN /TiALN /TiAISiN AITiSiN | HRC | HRC46/56 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide End Mill, 4 Flutes, Corner Radius - for Side Cutting（UNT-EMA09）
| UNT EDP # Click to Order | Corner Radius R | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMA090101 | R0.1 | 1.0 | 4 | 3 | 50 | 4 |
| EMA090102 | R0.2 | 1.0 | 4 | 3 | 50 | 4 |
| EMA090201 | R0.1 | 2.0 | 4 | 6 | 50 | 4 |
| EMA090202 | R0.2 | 2.0 | 4 | 6 | 50 | 4 |
| EMA090203 | R0.3 | 2.0 | 4 | 6 | 50 | 4 |
| EMA090302 | R0.2 | 3.0 | 4 | 8 | 50 | 4 |
| EMA090303 | R0.3 | 3.0 | 4 | 8 | 50 | 4 |
| EMA090305 | R0.5 | 3.0 | 4 | 8 | 50 | 4 |
| EMA090310 | R1.0 | 3.0 | 4 | 8 | 50 | 4 |
| EMA090402 | R0.2 | 4.0 | 4 | 11 | 50 | 4 |
| EMA090403 | R0.3 | 4.0 | 4 | 11 | 50 | 4 |
| EMA090405 | R0.5 | 4.0 | 4 | 11 | 50 | 4 |
| EMA090410 | R1.0 | 4.0 | 4 | 11 | 50 | 4 |
| EMA090505 | R0.5 | 5.0 | 6 | 13 | 50 | 4 |
| EMA090510 | R1.0 | 5.0 | 6 | 13 | 50 | 4 |
| EMA090602 | R0.2 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090603 | R0.3 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090605 | R0.5 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090610 | R1.0 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090615 | R1.5 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090620 | R2.0 | 6.0 | 6 | 16 | 50 | 4 |
| EMA090802 | R0.2 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090803 | R0.3 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090805 | R0.5 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090810 | R1.0 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090815 | R1.5 | 8.0 | 8 | 20 | 60 | 4 |
| EMA090820 | R2.0 | 8.0 | 8 | 20 | 60 | 4 |
| EMA091005 | R0.5 | 10.0 | 10 | 25 | 75 | 4 |
| EMA091010 | R1.0 | 10.0 | 10 | 25 | 75 | 4 |
| EMA091015 | R1.5 | 10.0 | 10 | 25 | 75 | 4 |
| EMA091020 | R2.0 | 10.0 | 10 | 25 | 75 | 4 |
| EMA091030 | R3.0 | 10.0 | 10 | 30 | 75 | 4 |
| EMA091205 | R0.5 | 12.0 | 12 | 30 | 75 | 4 |
| EMA091210 | R1.0 | 12.0 | 12 | 30 | 75 | 4 |
| EMA091215 | R1.5 | 12.0 | 12 | 30 | 75 | 4 |
| EMA091220 | R2.0 | 12.0 | 12 | 30 | 75 | 4 |
| EMA091230 | R3.0 | 12.0 | 12 | 30 | 75 | 4 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
