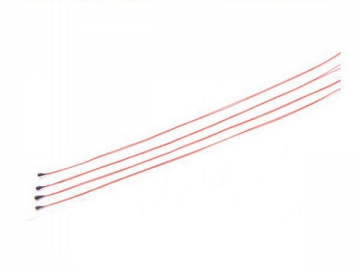

NTC Thermistor for Thermometer, MJ/SG
Request a Quote
Main Features
- High precision, accurate temperature range
- The NTC thermistor for thermometer is suitable for temperature measurement, control and compensation
- Within allowable range, the medical thermistor has high reliability and stability.
Request a Quote
Main Technical Parameters of NTC Thermistor for Thermometer
- Encapsulation: Epoxy resin
- Pin: Enamelled wire
- Resistance (KΩ) (37 ℃, zero power): 30 ± 1% (30Ω is divided into A to U and 1# to 32# gear)
- B25/50 value (K): 3950±1%
- Dissipation factor (mW/ ℃): 0.7
- Thermal response time(s): 3.2
- Working temperature (℃): - 40 ℃ to 120 ℃
- Power (mW): 3.5
Tailor-Made Service
The technical parameters of thermometer NTC thermistor can be designed in accordance with customer’s requirements.
Application of NTC Thermistor for Thermometer
The thermometer thermistor is ideally suitable for electronic clinical thermometers, medical equipment, temperature controllers, game machines, medical monitoring circuits, temperature recorders and heating devices.
Matter Needs Attention
The thermistor is very light and the pin is very thin, please do not pull them head.
