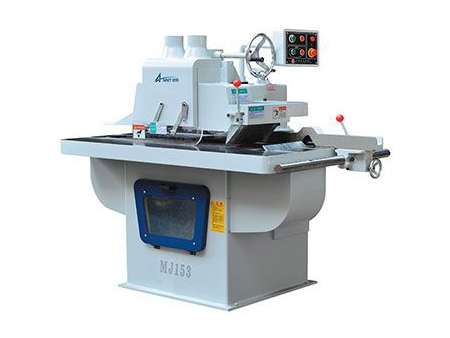

Straight Line Rip Saw
Technical Data
Model | | |
Saw blade diameter | φ475mm(19") | φ305mm(12") |
Max. cutting thickness | 120mm | 80mm |
Max. cutting width | 650mm | 450mm |
Spindle speed | 3000rpm/min | 3000rpm/min |
Saw blade size | 305×4.0×3.0×25.4mm | 305×4.0×3.0×25.4mm |
Spindle diameter | φ50.8mm | / |
Feed speed | 11-26m/min | 12-22m/min |
Feed motor power | 2.2kw | 0.75kw |
Main motor power | 15kw | 7.5kw |
Total power | 17.45kw | 8.25kw |
Table size | 2000×1180mm | 1500×900mm |
Overall dimension | 2250×1800×1550mm | 1800×1050×1500mm |
Machine weight | 2000kg | 850kg |
- Saw blade diameter: φ475mm (19”)
- Max. Cutting thickness: 120mm
- Max. Cutting width: 650mm
- Spindle speed: 3000rpm/min
- Saw blade size: 305×4.0×3.0×25.4mm
- Spindle diameter: φ50.8mm
- Feed speed: 11-26m/min
- Feed motor power: 2.2kw
- Main motor power: 15kw
- Total power: 17.45kw
- Table size: 2000×1180mm
- Overall dimension: 2250×1800×1550mm
- Machine weight: 2000kg
- Saw blade diameter:φ305mm(12")
- Max. Cutting thickness: 80mm
- Max. Cutting width: 450mm
- Spindle speed: 3000rpm/min
- Saw blade size: 305×4.0×3.0×25.4mm
- Spindle diameter: φ50.8mm
- Feed speed: 12-22m/min
- Feed motor power: 0.75kw
- Main motor power: 7.5kw
- Total power: 8.25kw
- Table size: 1500×900mm
- Overall dimension: 1800×1050×1500mm
- Machine weight: 850kg
Features
- Automatic chain track feeding, with anti-kickback protection, ensuring operation safety;
- Adjustable feeding speed, suitable for processing various types of wood;
- Automatic lubrication system, guaranteeing long service life of the machine;
