Steel Frame Roll Forming Machine

XHH-C305/310 light gauge steel framing machine provides cold-formedform steel solutions to floor joist and trusses for residential and light commercial buildings. It is capable of producing 305/310 wide profiles, which features increased loading capacity by 10% compared to 89mm wide profiles and greatly saves steel. The machine comes with a production speed of 1.8t/h.

Metal Framing Component
Specifications
Model C305/310
Dimension 7600*1500*1700mm
Main Servo Motor Power 22kW
Hydraulic Motor 11kW
Forming Steps 12Steps
Forming Speed 15tons/8hours
Voltage 380V/50Hz/3Phase
Effective Width 305mm, 310mm
Material Width 425mm
Flange Height 50mm
Lip 12mm
Material Thickness G300-G450: 0.95-2.5mm G550: 0.95-2.0mm
Tolerance for Cutting and Punching ±1mm
Tolerance for Forming ±1mm
Control System IPC computer controlling system
Design Software Vertex Software
Rollers Made using SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers
Material for Shaft SKD-11
Material for Puncher SKD-11
Material for Cutter SKD-11
Features
  • Post punching mould

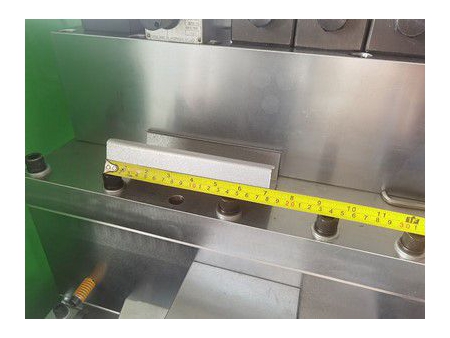

    XHH LGS Machine all with post punching and post cutting, which make more high precision performance on position & dimension

  • Lower material wasting

    Short distance between punching & cutting die limits the start-up material waste length at 0.2m, and end material waste length within 1 meter.

  • Save Cost

    The length of each start-up waste of the XHH post-punching & cutting machine is about 1m. Most machines on the market are pre-punching & post-cutting (other suppliers), thus the waste material is about 8m on each start-up.

    Start-Up/Change Steel Coil 8.11-12.13 kg
    5 Steel Coils/Day 8.11-12.13 kg
    Material Saved/Year 12.17-18.2 T

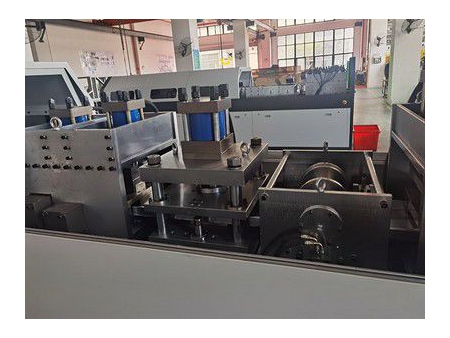

The steel frame roll-forming equipment mainly consists of:
  • Main forming system
  • 5 Tons Hydraulic Uncoiler
  • Servo motor system
  • IPC computer controlling system (Lenovo Laptop)
  • Production software (1set)
  • Design Software-Vertex, forever using license
  • Hydraulic Automatic Punching Device (Lip Notch, Swage, Big Service Hole, Triple Web Hole, Triple Flange Hole)
  • Hydraulic post-cutting device (material: SKD-11)
  • Automatic printing device
  • Run out table (4m)

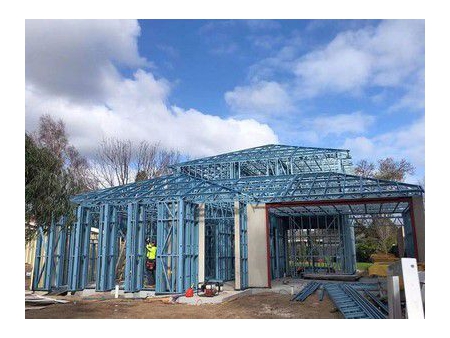

Light Steel Construction Projects
