Request a Quote
Application

The BLK2000kg industrial freeze dryer's capacity is 2000kg with an effective freeze drying area of 200m2. It is applicable to the freeze drying of produce, flowers, medicines, bio-products, chemicals and liquid food.

Freeze dried flowers and vegetables
Parameters
Model BLK2000kg
Shape and Size Circular 2800*17000mm
Installed Power 320kw- the actual usage generally ranges between 60 60 80% of the full power, i.e, 190 to 250kw
Tray's Area 196.2m2
Shelf 46
Cold Trap Temperature -40℃~-60℃
Vacuum Degree ≥15Pa
Heating way Steam or Electric heating
Capacity 2000KG

* Not only do we offer the above models, but we can customize the freeze dryers to have a 0.5m2-200m2 effective freeze-drying area based on customer requirements.

Features
  • Different from traditional drying equipment that requires an additional quick freeze machine or cold storage, this freeze dryer completes both freezing and drying.
  • An ultra-large, effective freeze drying area allows the freeze dryer to be applied in the production of ultra-large scale frozen and dried food.
  • It saves anywhere between 20 and 30% of energy when compared to other similar products available on the market today.
  • High automation degree: a single operator can operate multiple devices, saving labor costs.
  • The waste heat recovery system developed in house is used, saving operation costs.
  • Various fault alarms ensure operation is more stable and safe.
Details

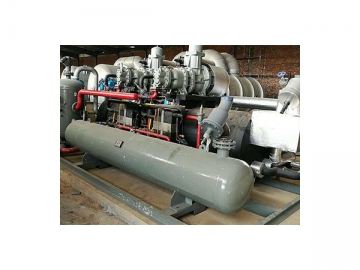

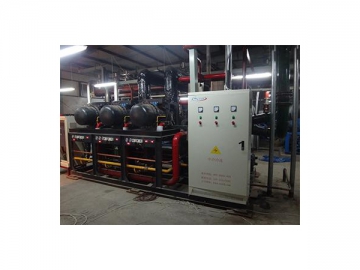

Compressor: compressor brands are primarily BOCK (Germany), FRASCOLD (Italy), and KOBELCO (Japan), each of which has an excellent freeze performance and reliability.

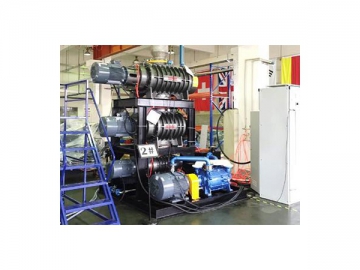

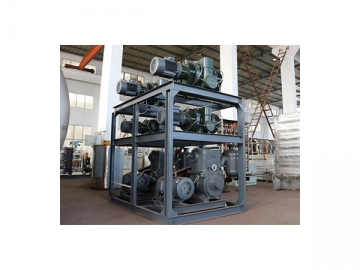

Vacuum pump: vacuum pump brands are primarily TUTHILL KINNEY (USA), LEYBOLD, and ULVAC (Japan), each of which has an excellent accuracy and vacuum effect.

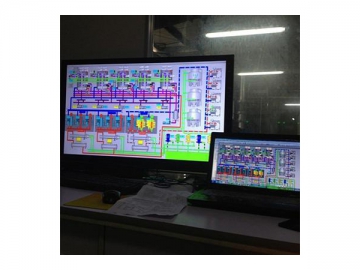

  • All devices can be controlled manually and automatically on screen.
  • Display, store and viewing of a variety of temperatures, vacuum degree and corresponding curves, all simultaneously.

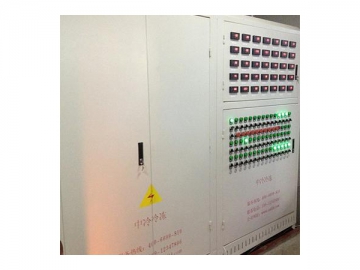

  • Fault-alarming function
