Cut-Off Knife

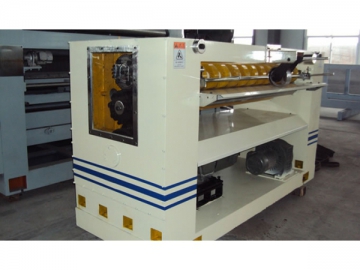

NC-A-100 Type Computer Straight Knife Cutting Machine
1. Design speed: 80-100 m / min
2. Effective width: 1400-2200mm
3. Cutting length: 500-9999mm Cutting accuracy: ± 1mm
4. Computer can store multiple sets of orders, HMI separate color touch screen display
5. High-quality AC servo motor
6. 40Cr quenched treatment transmission gears with high transmission accuracy and low noise.
7. High speed flatbed serrated blade features high hardness for a long service life.
8. Precise blade engagement, good cutting quality, protective insert s and spray lubricated side chain.

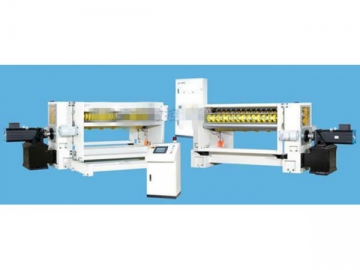

NC-B-120 Type Computer Spiral Knife Cutting Machine
1. High-quality AC servo motor with color touch screen displayed control system.
2. Effective width 1400-2200mm
3. Cutting length 500mm-9999mm, cutting accuracy: uniform ± 1mm, design speed 100-120m/min
4. Computer system can store multiple order sets, HMI separate color touch screen display
5. 3, the computer can store multiple sets of orders, HMI separate color touch screen display
6. High speed steel blade insert s, high hardness spiral knife structure
7. 40Gr transmission gear tooth
8. Pneumatic wheel lift
9. Frequency controlled paper delivery system, chain driven with sun wheel platen

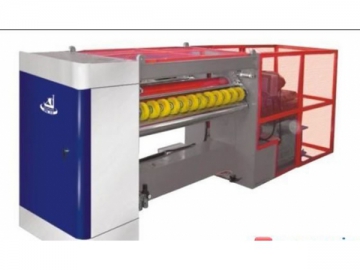

NC-C-120-Type Computer Spiral Knife Cutting Machine
1.Effective width 1400-2200mm cutting length 500mm-9999mm, cutting accuracy: uniform ± 1mm, design speed 100-120m / min.
2.Computer can store multiple sets of orders, HMI separate color touch screen display
3.High-quality AC servo motor
4.External main motor, connected to the gear shaft using a diaphragm coupling connection.
5.Spiral knife structure
6.Cross gear and shaft that uses a keyless connection (up sets)
7.40Gr transmission gears, spray lubricated
8.Pneumatic wheel lift
9.Frequency controlled paper delivery, belt driven, sun wheel platen

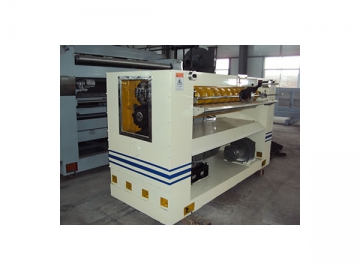

NC-D-150 Computer Spiral Knife Cutting Machine
1.Machine speed: 130-150m / min
2.Effective width: 1400mm-2500mm.
3.Cutting length: 500mm-9999mm.
4.Cutting accuracy: ± 1mm.
5.Independent pumps and filters with two copper distributors
6.Spiral, serrated knife
7.Carbon steel rolls
8.Independent pumps and filters with two copper distributers in each gear position
9.Inverter drives are used before and after the feed belt drive
10.Precision adjustment
11.Computer can store multiple sets of orders
12.External main motor is connected to the gear shaft using a diaphragm coupling
13.Backlash elimination device: two-piece laminated type
14.Cross gear and shaft used a keyless connection (up sets)
15.Feeder reach: 680mm
