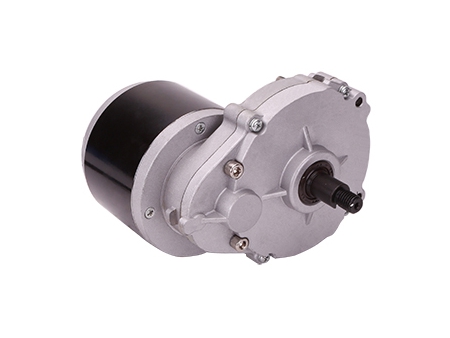

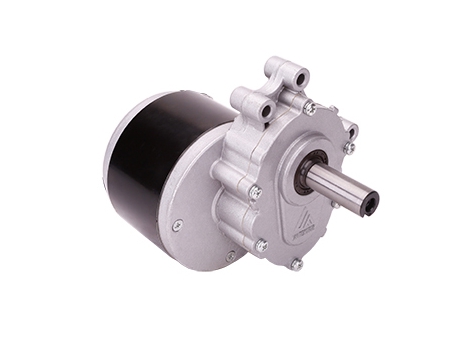

180-250W Drive Motor, PMDC Brushed Motor HQ068B1
Your Motion
Application: electric mobility scooter
Technical Specifications
| Rated Power (W) | 180 | 250 |
| Rated Voltage(V) | 24 | 24 |
| No-load Current(A) | ≤1.8 | ≤2.0 |
| No-load Revolution (RPM) | 3600 | 3800 |
| Rated Torque(N•m) | 0.57 | 0.77 |
| Rated Revolution (RPM) | 3000 | 3100 |
| Rated Current(A) | ≤10.0 | ≤14.0 |
| Rated Efficiency (%) | ≥75 | ≥75 |
| Working Cycle (min.) | S2-60 | S2-60 |
| Insulation Class | F | F |
| Protection Level | IP44 | IP44 |
| Gear Ratio | 17.75 | 17.75 |
| Length (mm) | 490 | 490 |
Note: customization of PMDC drive motor is available upon your product requests and working conditions.
