EMA11 0.1mm Micro End Mills, Square 2 Flute Carbide

EMA11 0.1mm Micro End Mills, Square 2 Flute Carbide
EMA11 0.1mm Micro End Mills, Square 2 Flute Carbide
EMA11 0.1mm Micro End Mills, Square 2 Flute Carbide
: http://metalworking-tool.com/1-9-ema11-2-flutes-miniature-square-end-mills.html
  • Special edge geometry at the end provides small chip loads and higher metal removal rate
  • Offers excellent performance when cutting prehardened steels up to HRc56
  • Used for machining molds & dies
  • Super micro end mill available with diameters ranging from 0.02~2.9mm
  • 2 flute, miniature cutting tools are suitable for high precision milling in medical, optical, electronics and aerospace industries

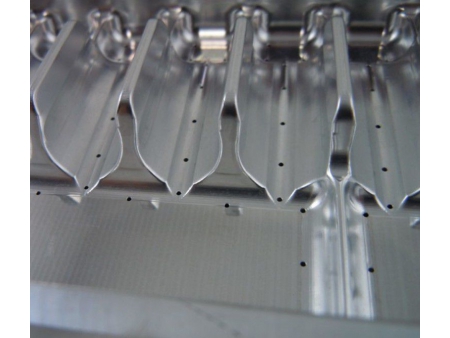

Application
Product Specifications
Coating AITiN /TiALN /TiAISiN
AITiSiN 		HRC HRC46/56
Helix Angle 35°/36°/37° Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide 2 Flute Miniature Square End Mills（EMA11)
UNT EDP # Click to Order Mill Dia.
D1 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EMA11002 0.2 4 0.4 50 2
EMA11003 0.3 4 0.6 50 2
EMA11004 0.4 4 0.8 50 2
EMA11005 0.5 4 1 50 2
EMA11006 0.6 4 1.2 50 2
EMA11007 0.7 4 1.4 50 2
EMA11008 0.8 4 1.6 50 2
EMA11009 0.9 4 1.8 50 2
EMA11011 1.1 4 4 50 2
EMA11012 1.2 4 4 50 2
EMA11013 1.3 4 4 50 2
EMA11014 1.4 4 6 50 2
EMA11016 1.6 4 6 50 2
EMA11017 1.7 4 6 50 2
EMA11018 1.8 4 6 50 2
EMA11019 1.9 4 6 50 2
EMA11021 2.1 4 6 50 2
EMA11022 2.2 4 6 50 2
EMA11023 2.3 4 6 50 2
EMA11024 2.4 4 6 50 2
EMA11026 2.6 4 8 50 2
EMA11027 2.7 4 8 50 2
EMA11028 2.8 4 8 50 2
EMA11029 2.9 4 8 60 2
