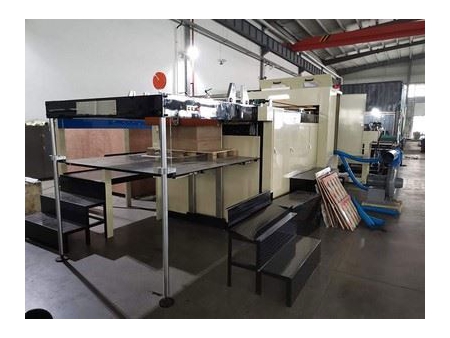

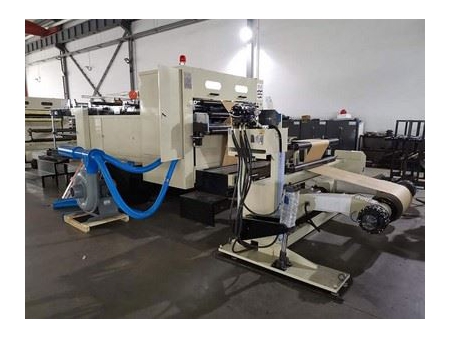

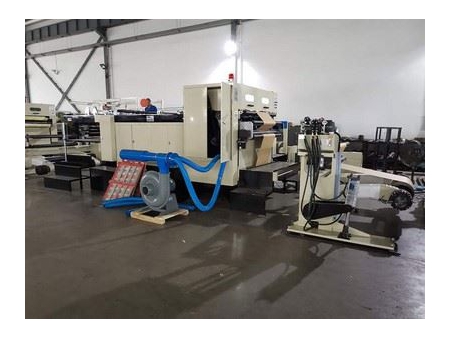

Rotary Sheet Cutting Machine
This is a high end rotary sheet cutting machine designed for cigarettes package industry. This cutting equipment is suitable for cutting printed roll materials, like chrome paper, golden and silver paper, aluminum foil, hologram paper, etc.
Features
- PLC center control system is utilized for its main electrical system. Meanwhile, the machine has a man-machine interface to offer dynamic display of operation conditions.
- Constant length servo driving system is imported from Japan and photoelectric switch is imported from German, which ensure high cutting accuracy.
- Mitsubishi tension control system is adopted to control unwinding tension, thus ensuring constant tension.
- The material for making the cutting knife blade is imported from German, which ensures long service life.
- The paper corner adjusting system of the rotary sheet cutting machine is designed based on advanced technology, which ensures the right-angle for paper corners.
- The stepless speed regulation for the feeding system ensures smooth single sheet feeding and overlapping sheet feeding.
- The collecting system of the rotary sheet cutting machine can achieve automatic collection, counting, and label inserting, so as to ensure heaping in order and precision counting.
Specification
| Model | GQD-1100S |
| Max. Cutting width | 1100mm |
| Cutting length | 400-1000mm |
| Unwinding diameter | 1600mm |
| Cutting speed | ≤200m/min |
| Cutting frequency | ≤300pcs/min |
| Cutting precision | ±0.1-0.15mm |
| Paper thickness | 55-350g/m² |
| Stacking height | 1300mm |
| Working voltage/frequency | 380V/50Hz |
| Power | 42KW |
| Machine weight | 9000Kg |
| Overall dimension | 11000×3500×2300mm |
