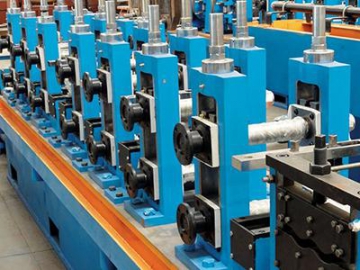

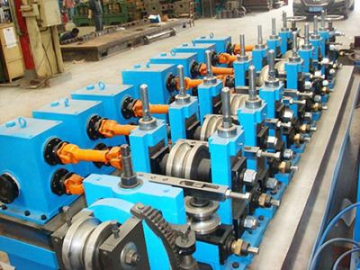

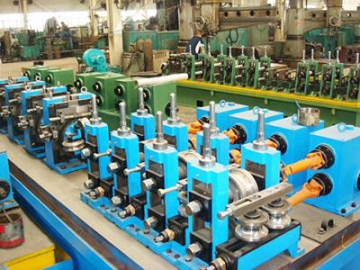

ERW20 ERW Carbon Steel Tube Mill
ERW20 electric resistance welded carbon steel pipe production line
| Product & Yield | Round Pipe | 8mm-20mm Thickness:0.5mm-1.5mm |
| Square & rectangle tube | 10mm×10mm -15mm×15mm Thickness:0.5mm-1.5mm | |
| Length | 6m-12m Length Tolerance: ±3mm | |
| Production Speed | 20-120 m/min | |
| Production capacity | 10,000ton/year | |
| Consumption | Mill installed capacity | 220 kw |
| Line Area | 40m(length) ×3.8m (width) | |
| worker | 6-8 workers | |
| Raw Material | Carbon Steel coil | GB/T 700: Q235B(ASTM: GR·D(σs 230) / JIS: SS400) |
| Width | 36mm-120mm Thickness: 0.5mm-1.5mm | |
| Coil ID | 450-520mm | |
| Coil OD | Max 1200mm | |
| Coil Weight | 1.0-1.5t |
Advantages
- The maximum production speed is 120m/minute.
- Stable operation, even at high speeds.
- High accuracy and low wastage, only 0.5/100 diameter error of the pipe’s outer diameter
- Metallurgy industry
- Transportation
- Machinery and vehicle industries
- Construction industry
