Portable Gasoline Generator
| Model | KS1500i | ||
| engine | Model | 154F | |
| Type | 1 cylinder, 4-stroke, OHV, forced air-cooling | ||
| Displacement(Bore×Stroke) | 87ml(54×38mm) | ||
| Compression Ratio | 8:01 | ||
| Engine Speed | 3600rpm | ||
| Ignition system | Transistor magneto | ||
| Engine Oil capacity(L) | 0.45L | ||
| Fuel tank capacity(L) | 2.8L | ||
| Noise | 82dB(1M) | ||
| generator | AC output | Rated Voltage(V) | 230 |
| Rated frequency(Hz) | 50 | ||
| Rated power(W) | 1000 | ||
| Max. power(W) | 1300 | ||
| Rated amperage(A) | 4.3 | ||
| DC output | 12V 8.3A | ||
| Package(mm) | 495×370×430 | ||
| N.W(kg) | 20 Kg | ||

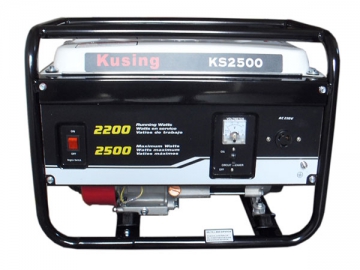

| Generator | Model | KS2500 |
| Rated Voltage(V) | 230(50hz)/120(60hz)/240(60hz) | |
| Rated Amperage(A) | 8.7/20.8 | |
| Max.Power(w) | 2200/2500 | |
| Rated Power(w) | 2000/2200 | |
| Rated Frequency(hz) | 50/60 | |
| Power Factor | 1 | |
| Voltage Regulate | Automatic Voltage Regulation | |
| Engine | Engine model | WM168FB |
| Starting System | Recoil/ElectricStart | |
| Max.Power hp(kw)/rpm | 6.5(4.8)/3600 | |
| Packing | N.W/G.W(Kg) | 42.5/45.5 |
| Dimension(L×W×H)mm | 605×455×470 | |
| 20FT(set) | 225 |
| Engine | Model | KS2500i |
| Engine Model | WM170F/P | |
| Engine Type | OHV,Single cylinder,Forced Air Cooling,4-Stroke | |
| Bore×Stroke(mm) | 70×55 | |
| Displacement(ml) | 212 | |
| Ignition advance angle | 23±2° | |
| Compression Ratio | 8.6:1 | |
| Carburator | Flat suction butterfly valve type | |
| Crankshaft rotation direction | Clockwise(From gasoline engine fan side) | |
| Max.torque N.m(r/min) | 11.3/3000 | |
| Lube oil consumption rate(G/KW.H) | ≤6.8 | |
| No load lowest rotation speed(r/min) | 1440±150 | |
| Starting system | Recoil/Electric start | |
| Starting performance | 30s(≤3 times) | |
| Lubrication method | Splash type | |
| Lubrication oil | Gasoline oil | |
| Fuel capacity(L) | 13 | |
| Certificate | ||
| Alternator Type | Magnetor | |
| Generator | Voltage regulation method | Inverter automatic reguration |
| Phase | Single Phase | |
| THD | < 3% | |
| Rated voltage(V) | 230 | |
| Max.power(w) | 2500 | |
| Rated power(w) | 2300 | |
| Rated frequency(hz) | 50/60 | |
| Rate rotation speed(r/min) | 3600 | |
| Phase | Single Phase | |
| Power factor(cosØ) | 1 | |
| Insulation class | F | |
| N.W(kg) | 32 | |
| Dimension(L×W×H)mm | 500×425×435 |
| Engine | Model | KS3000i |
| Engine Model | WM170F/P | |
| Engine Type | OHV,Single cylinder,Forced Air Cooling,4-Stroke | |
| Bore×Stroke(mm) | 70×55 | |
| Displacement(ml) | 212 | |
| Ignition advance angle | 23±2° | |
| Compression Ratio | 8.6:1 | |
| Carburator | Flat suction butterfly valve type | |
| Crankshaft rotation direction | Clockwise(From gasoline engine fan side) | |
| Max.torque N.m(r/min) | 11.3/3000 | |
| Lube oil consumption rate(G/KW.H) | ≤6.8 | |
| No load lowest rotation speed(r/min) | 1440±150 | |
| Starting system | Recoil/Electric start | |
| Starting performance | 30s(≤3 times) | |
| Lubrication method | Splash type | |
| Lubrication oil | Gasoline oil | |
| Fuel capacity(L) | 13 | |
| Certificate | EPA,CARB | |
| Alternator Type | Magnetor | |
| Generator | Voltage regulation method | Inverter automatic reguration |
| Phase | Single Phase | |
| THD | < 3% | |
| Rated voltage(V) | 230 | |
| Max.power(w) | 2700 | |
| Rated power(w) | 3000 | |
| Rated frequency(hz) | 50/60 | |
| Rate rotation speed(r/min) | 3600 | |
| Phase | Single Phase | |
| Power factor(cosØ) | 1 | |
| Insulation class | F | |
| N.W(kg) | 32 | |
| Dimension(L×W×H)mm | 500×425×435 |
| Engine | Model | KS3200 |
| Engine Model | WM170F | |
| Engine Type | OHV,Single cylinder,Forced Air Cooling,4-Stroke | |
| Bore×Stroke(mm) | 68×58 | |
| Ignition system | Transistor magneto | |
| Starting system | Recoil/Electric start | |
| Compression Ratio | 8.5:1 | |
| Oil capacity(L) | 0.6 | |
| Fuel capacity(L) | 15 | |
| Generator | Rated voltage(V) | 220 |
| Rated amperage(A) | 11.3 | |
| Max.power(w) | 2700/3200 | |
| Rated power(w) | 2500/2800 | |
| Rated frequency(hz) | 50/60 | |
| Phase | 1 | |
| Voltage regulation | Automatic Voltage Regulation | |
| Packing | N.W/G.W(kg) | 45/47 |
| Dimension(L×W×H)mm | 605×455×470 | |
| 20FT(set) | 225 |

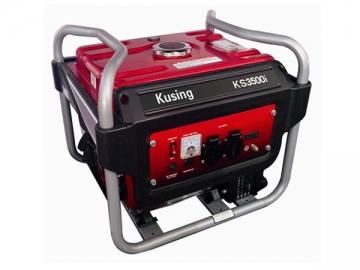

| Engine | Model | KS3500i |
| Engine Model | WM170F/P | |
| Engine Type | OHV,Single cylinder,Forced Air Cooling,4-Stroke | |
| Bore×Stroke(mm) | 70×55 | |
| Displacement(ml) | 212 | |
| Ignition advance angle | 23±2° | |
| Compression Ratio | 8.6:1 | |
| Carburator | Flat suction butterfly valve type | |
| Crankshaft rotation direction | Clockwise(From gasoline engine fan side) | |
| Max.torque N.m(r/min) | 11.3/3000 | |
| Lube oil consumption rate(G/KW.H) | ≤6.8 | |
| No load lowest rotation speed(r/min) | 1440±150 | |
| Starting system | Recoil/Electric start | |
| Starting performance | 30s(≤3 times) | |
| Lubrication method | Splash type | |
| Lubrication oil | Gasoline oil | |
| Fuel capacity(L) | 13 | |
| Certificate | EPA,CARB | |
| Generator | Alternator Type | Magnetor |
| Voltage regulation method | Inverter automatic reguration | |
| Phase | Single Phase | |
| THD | < 3% | |
| Rated voltage(V) | 230 | |
| Max.power(w) | 3200(50HZ)3500(60HZ) | |
| Rated power(w) | 3000(50HZ)3200(60HZ) | |
| Rated frequency(hz) | 50/60 | |
| Rate rotation speed(r/min) | 3600 | |
| Phase | Single Phase | |
| Power factor(cosØ) | 1 | |
| Insulation class | F | |
| Packing | N.W(kg) | 32 |
| Dimension(L×W×H)mm | 500×425×435 | |
| 20FT(set) | 225 |

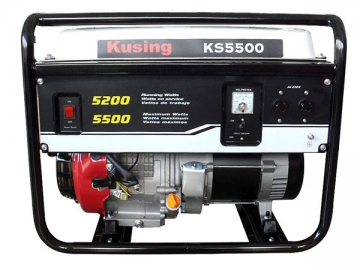

| Engine | Model | KS5500 |
| Engine Model | WM188F | |
| Engine Type | OHV,Single cylinder,Forced Air Cooling,4-Stroke | |
| Bore×Stroke(mm) | 88×64 | |
| Ignition system | Transistor magneto | |
| Starting system | Recoil | |
| Compression Ratio | 8.0:1 | |
| Oil capacity(L) | 1.1 | |
| Fuel capacity(L) | 25 | |
| Generator | Rated voltage(V) | 220 |
| Rated amperage(A) | 22.7 | |
| Max.power(w) | 5200/5500 | |
| Rated power(w) | 5000/5200 | |
| Rated frequency(hz) | 50/60 | |
| Phase | single/three | |
| Voltage regulation | Automatic Voltage Regulation | |
| Packing | N.W/G.W(kg) | 84/88 (91/95) |
| Dimension(L×W×H)mm | 690×535×575 | |
| 20FT(set) | 128 |

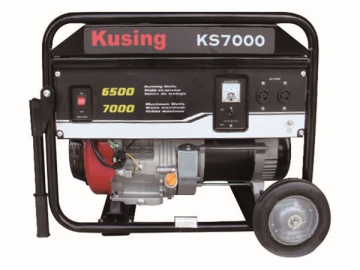

| Engine | Model | KS7000 |
| Engine Model | WM190F | |
| Engine Type | OHV,Single cylinder,Forced Air Cooling,4-Stroke | |
| Bore×Stroke(mm) | 90×66 | |
| Ignition system | Transistor magneto | |
| Starting system | Recoil/Electric start | |
| Compression Ratio | 8.0:1 | |
| Oil capacity(L) | 1.1 | |
| Fuel capacity(L) | 25 | |
| Certificate | EPA,CARB | |
| Generator | Rated voltage(V) | 230,240/120 |
| Rated amperage(A) | 28.3,27/54 | |
| Max.power(w) | 6500/7000 | |
| Rated power(w) | 6200/6500 | |
| Rated frequency(hz) | 50/60 | |
| Phase | single/three | |
| Voltage regulation | Automatic Voltage Regulation | |
| Packing | N.W/G.W(kg) | 91/95 (103/107) |
| Dimension(L×W×H)mm | 710×550×590 | |
| 20FT(set) | 136 | |
