Precision Gear Rack

: http://ldfitnessequipment.com/1-5-15-barbell-rack/index.html

Gear racks are used to convert a rotating movement to a linear movement. Common precision gear rack types include square gear racks and round gear racks, with straight teeth on the surface. Gear racks traditionally work together with circular gears.

Precision Gear Rack Features:
simple design
significant load carrying capacity
unlimited length design capabilities

JST provides precision gear racks in a variety of materials, configurations, modules, and lengths. Not only do we offer gear racks with straight teeth, but we also offer gear racks with helical teeth. Backed by more than 10 years of experience, we can also provide customers with customized gear racks according to specific requirements.

Gear Racks We’ve Produced :

Helical Gear Rack
Module: 2.5
Teeth Number: 100
Tooth Depth: 0.62
Tooth Width: 2.3

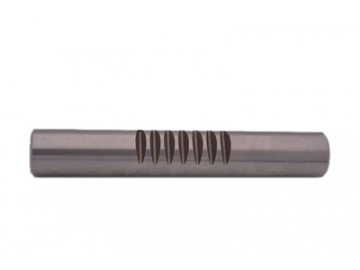

Round Gear Rack
Module: 1.5
External Diameter: φ16
Total Length: 103
Thread Hole Spec: M8*1.25
Concentricity: 0.1

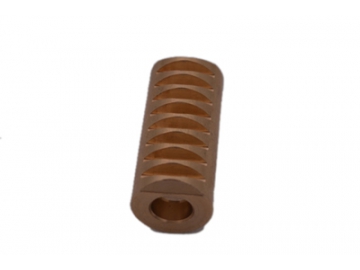

Brass Gear Rack
Module: 1
External Diameter: φ15
Total Length: 42
Concentricity: 0.03

Not only does JST offer rotary power transmission products, but we also offer linear motion products such as gear racks to work with gears. The gear racks can be customized to fit precision gears such as spur gears, helical gears and more. Materials available include carbon steel, alloy steel, stainless steel, brass and more. If you need any custom service for power transmission components, JST Gear has the equipment and experience to make quality products that satisfy all of your requirements.
