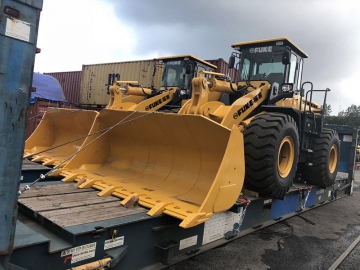

Mine Loader, FK-983G
Basic Information
-
- Bucket capacity
- 3m3
-
- Operating weight
- 17.6T
-
- Rated load
- 6T
-
- Wheelbase
- 3668mm
Technical Specifications
- Engine model: Yuchai
- Rated power: 129kW
- Tire model: 17.5-25
- Bucket capacity: 3m³
- Rated load: 6T
- Operating weight: 17.6T
- Min. turning radius: 6800mm
- Speed: 0-30km/h
- Forward gear: 1st gear 0-9km/h, 2nd gear 0-30km/h
- Reverse gear: 0-12km/h
- Max. climbing gradient: 16°
- Overall length: 8250mm
- Overall width: 2100mm
- Overall height: 2320mm
- Min. ground clearance: 305mm
- Wheelbase: 3668mm
- Max. dump height: 1870mm
- Dump reach: 1750mm
Loader Accessories
- Grass cutter

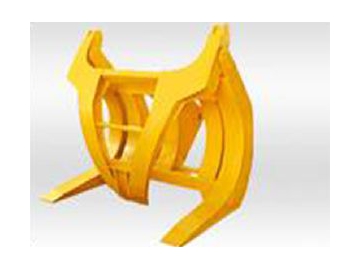

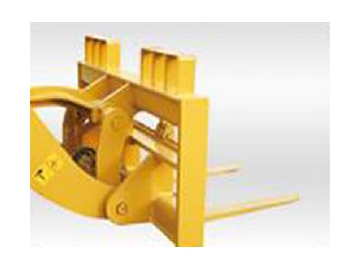

- Clamping machine

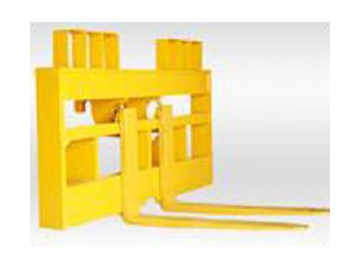

- Sliding fork

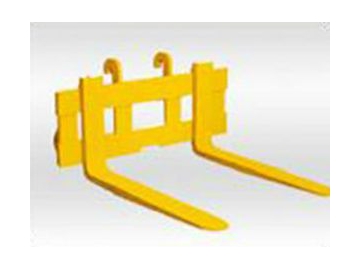

- Flat fork
- Coal scuttle

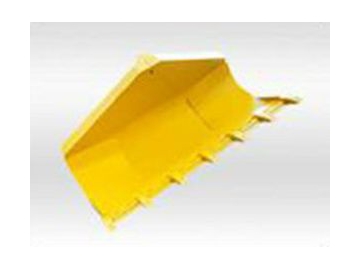

- Side dump

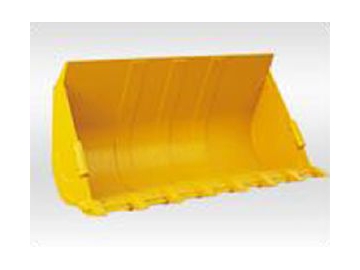

- Rock bucket

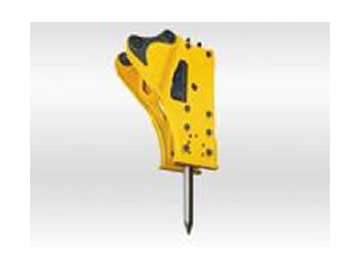

- Breaker

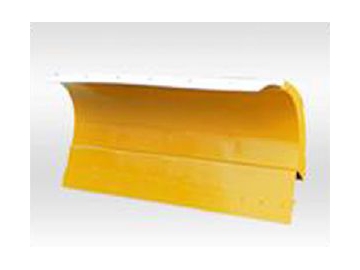

- Snowplow

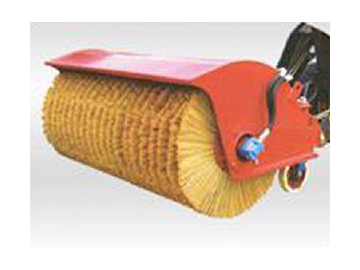

- Snow shovel
- Quick change tooling

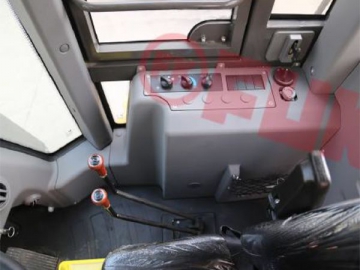

Type 1 Mechanical Operating System

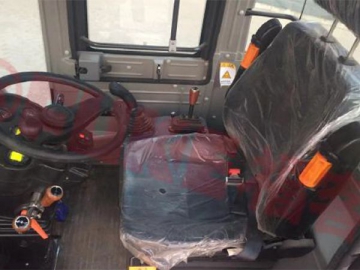

Type 2 Pilot Operating System

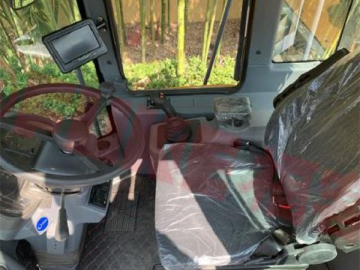

Type 3 Pilot And Image Operating System
