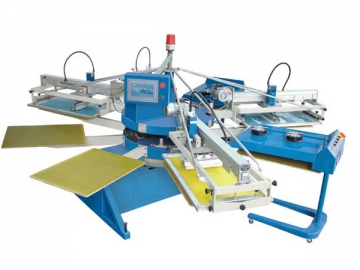

SPE Series Automatic Screen Printer
The SPE series automatic screen printer comes with intelligent micro-processor, touch screen, and servo motor drive system, achieving high printing stability and ±0.05mm color registration tolerance. To ensure minimal maintenance and easy operation, each parts of the screen printing machine is strictly tested before installation.
Features
1. The textile printing machine is driven by servo motor.
2. The free turntable rotation realizes optimal color registration.
3. Electrically controlled printing and flood bar speed.
4. For optimal printing effect, the printing speed, stroke and angle are adjustable.

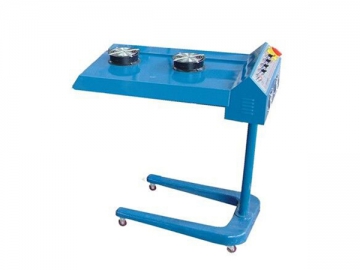

5. A movable dryer can be installed inside the print station of the SPE series automatic screen printer as necessary.
| Model | SPE-104/8 | SPE-156/10 | SPE-158/12 |
| Print Color/Station | 4-6/8 | 4-8/10 | 6-10/12 |
| Max. Image Area | 500×700mm | 500×700mm | 500×700mm |
| Pallet Size | 600×800mm | 600×800mm | 600×800mm |
| Frame Size | 680×980mm | 680×980mm | 680×980mm |
| Air Consumption | ≥0.8MPa | ≥1.0MPa | ≥1.0MPa |
| Output | 700pcs/h | 700pcs/h | 700pcs/h |
| Power | 2.0kW | 2.0kW | 2.9kW |
| Dryer Power | 13.5kW | 13.5kW | 13.5kW |
| Size | Φ4000×1650mm | Φ4800×1850mm | Φ5000×1850mm |
| Weight | 1500kg | 2000kg | 2200kg |
