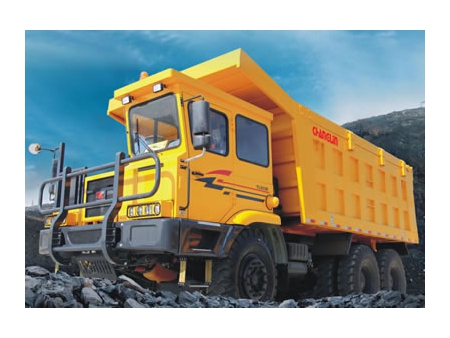

Mining Truck TL865
- Rated output 309KW
- Loading capacity 26m³
Inquiry
- Rigid drive axle has 30T load capacity. Reinforced suspension system. Main beams and cross members on the chassis are made of high-strength material. 14-24cm diameter tire suitable for tough terrain. All factors contribute to the large load capacity of TL865 mining truck.
- Powerful engines, in 375kw to 420kw power range, are available for different road conditions. Quality gearbox provides large torque and high gear ratio.
- All steel driver cab makes for maximum driving safety, wide view angle, large operating space, and excellent driving comfort.
- Enhanced load capacity for improved transportation efficiency.
| Model | TL865 |
| Length×Width×Height(m) | 8500×3200×3700 |
| Complete kerb mass(Kg) | 15000 |
| Chassis kerb mass(Kg) | 60000 |
| Diesel engine type | WeiChai WD12.420 |
| Rated output(KW) | 309 |
| Drive type | 6×4 |
| Transmission(mm) | 3600 1500 |
| Loading capacity(m3) | 26 |
| Max.gradeability(%) | 36 |
| Min.turning radius(m) | 10.8 |
