Double Girder Manual Bridge Crane

: http://lifting-crane.com/15-1-manual-bridge-crane/209267/index.html

, SQ Model

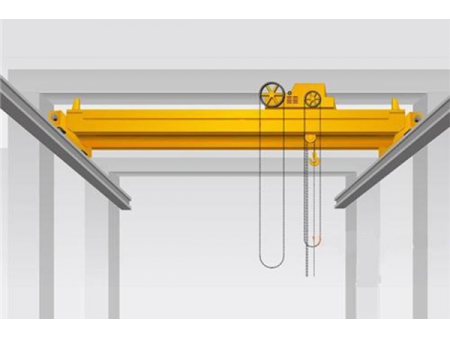

Our SQ model manual bridge crane is a double girder crane manufactured according to customer's requirements. With a span of 10-17m and lifting height of 10-16m, the overhead lifting system can handle materials weighing 5-20t. Thanks to manual control method, it is easy to operate. This workstation crane comes with relatively low purchase cost, and it is ideal for the power supply unavailable warehouses, workshops or equipment maintenance places where carrying capacity, efficiency and speed are not of high importance.

Technical Parameters of the Manual Bridge Crane

Lifting capacity	Span	Lifting height	Steel rail width	Main dimensions						Hook limit size			Traction force			End truck wheel pressure	Total weight
				W	B	H	A	Wc	K	h	L1	L2	Lifting	Trolley	Crane
				≤
t	m	m	mm	mm									kg			t	t
5	10		40	2200	2800	950	160	1300	1300	680	980	1020	37	10	30	3.35	3.45
	11															3.42	3.64
	12															3.52	4.04
	13															3.63	4.25
	14															3.83	4.78
	15															3.86	5.00
	16															4.01	5.64
	17															4.10	5.89
10	10		60										53	16	35	5.67	3.79
	11															5.76	4.00
	12															5.97	4.60
	13															6.07	4.85
	14															6.23	5.30
	15															6.31	5.57
	16															6.50	6.25
	17															6.59	6.54
16	10		60	2600	2300	1170	170	1500	1600	800	1000	1260	58	25	25	8.8	5.12
	11															8.9	5.48
	12															9.12	5.98
	13															9.34	6.28
	14															9.62	7.21
	15															9.76	7.56
	16															9.96	8.21
	17															10.10	8.57
20	10		60										64	29	30	10.3	5.45
	11															11.13	5.75
	12															11.34	6.30
	13															11.52	6.63
	14															11.78	7.47
	15															11.94	7.85
	16															12.23	8.74
	17															12.43	9.55
