The JD-300D series rotary system pouch packaging machines produce 2 pouches per production cycle, and are twice the speed of the JD-180/240 series. The 300D series produces 6 bag types, making it applicable for the packaging of different liquids, solids and powders like jam, puffed food, detergents and dairy products.

Packing Process

1. Film Unwind
2. Bag Forming
3. Film Guide
4. Bottom Seal
5. Vertical Seal
6. Tear Notch

7. Photocell
8. Servo Advance
9. Cutting
10. Pouch Catching
11. Pouch Opening

12. Filling Ⅰ
13. Filling Ⅱ
14. Top Seal
15. Finished Product
16. Product Outlet

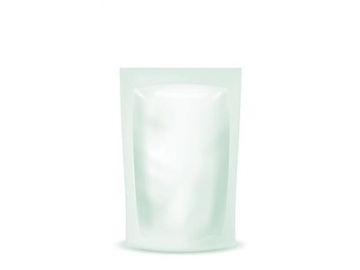

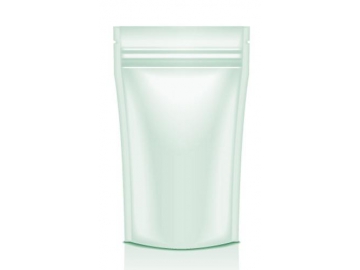

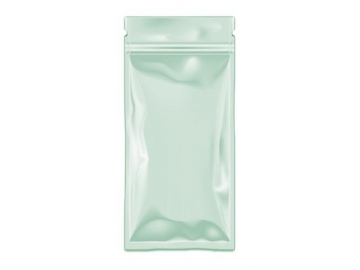

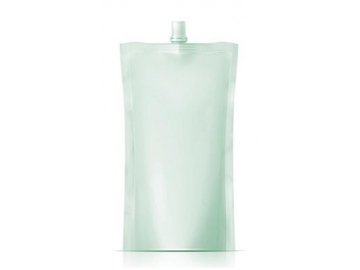

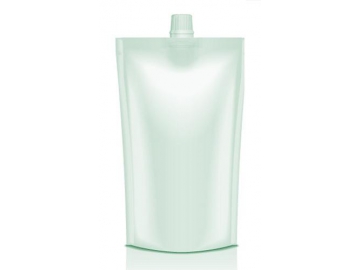

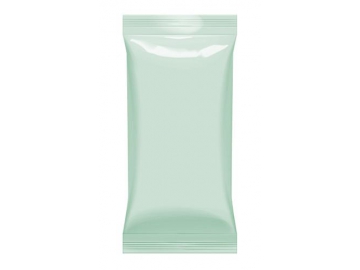

Bag Types
Parameter
Type Minimum Bag Size (mm) Maximum Bag Size (mm) Packing Capacity (ml) Packing speed (ppm) Power (kw) Gas consumption (NL/min) Weight (kg) Equipment
Size (mm)
JD-300DS 90*110 150*260 1000 80-100 9 0.3 3200 8500*1300*1500
JD-300DSZ 90*110 150*260 1000 80-100 9 0.3 3200 8500*1300*1500
JD-300DSC 90*110 150*260 1000 80-100 10 0.35 3200 8500*1300*1500
Details

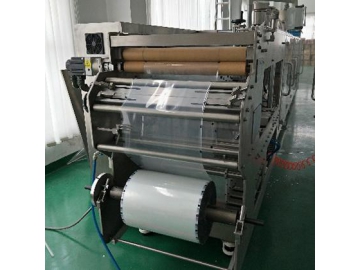

  • · Film Unwind Unit
    · User-friendly design, quick and easy to change films
    · Ensure good control of film tensile force
    · More flexible and suitable for different pouch specifications

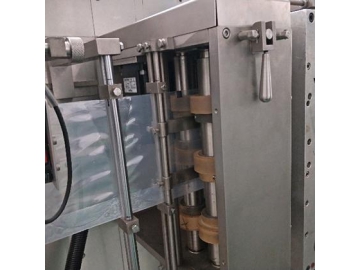

  • · Servo Advance System
    · Accurate positioning with stable operation
    · Stable pouch advance with less deviation
    · Touch screen can adjust pouch wide, easy use.

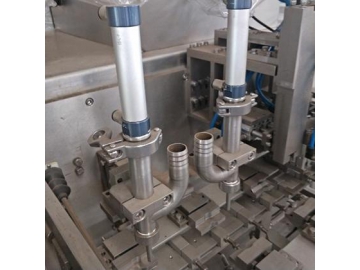

  • · Dual Filling Station
    · Reduce filling time by half
    · Improved filling accuracy
    · Fill 2 products simultaneously
