The JDS-180D/240D series rotary system pouch packaging machines feature the same parameters as the JDS-180/240 series in terms of packing bag types and packing bag sizes. However, the JD-180D/240D series produces 2 pouches during every production cycle, making it twice the speed of the JDS-180/240 series. For high efficiency packaging machines, we recommend choosing the 180D/240D series.

The JDS-180D/240D series is used to package juice, jam, puffed food, drugs and dairy products.

Packing Process

1. Film Unwind
2. Bag Forming
3. Film Guide
4. Photocell
5. Bottom Seal
6. First Vertical Seal

7. Second Vertical Seal
8. Tear Notch
9. Double Cutting
10. Pouch Catching Ⅰ
11. Pouch Catching Ⅱ
12. Pouch Advance

13. Pouch Opening
14. Filling Ⅰ
15. Filling Ⅱ
16. Top Seal
17. Finished Product
18. Product Outlet

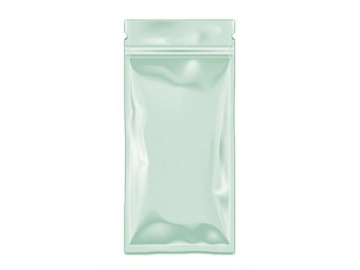

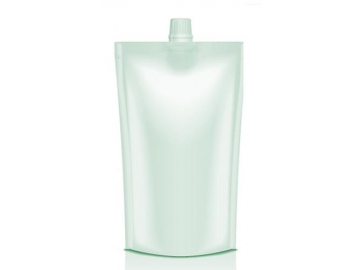

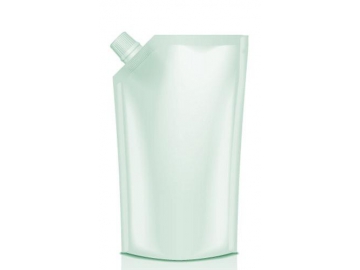

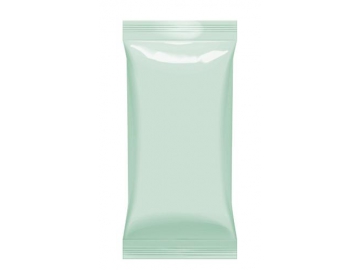

Bag Types
Parameter
Type Minimum Bag Size (mm) Maximum Bag Size (mm) Packing Capacity (ml) Packing speed (ppm) Power (kw) Gas consumption (NL/min) Weight (kg) Equipment Size (mm)
JDS-180D 60*80 90*230 200 120-150 5 0.35 2000 4000*1300*1500
JDS-240D 60*80 125*230 300 120-150 5 0.35 2000 400*1300*1500
Details
  • · Independent Film Unwind Unit
    · Better doypack forming
    · Ensure good control of film tensile force
    · More flexible and suitable for different pouch specifications

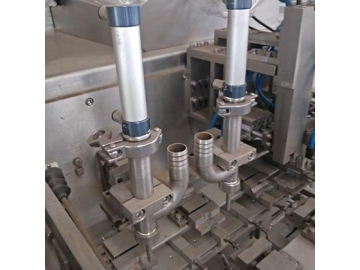

  • · Dual Filling Station
    · Reduce filling time by half
    · Improved filling accuracy
    · Fill 2 products simultaneously

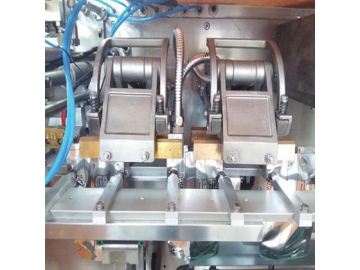

  • · 2 Top Seal Unit
    · Ensure seal strength, no leakage
    · Even seal with good appearance
    · Higher adaptability of film material
