JDZ-180D/300D Rotary System Pouch Packaging Machines
The JDZ-180D/300D series rotary system pouch packaging machines produce 2 pouches during each production cycle, thus improving the production efficiency. This series includes a vacuum function, which keeps air out to prevent food oxidation and spoilage, and is ideal for packaging marinated food, pickled food, and fruit.
1. Film Unwind
2. Bag Forming
3. Film Guide
4. Photocell
5. Bottom Seal
6. First Vertical Seal
7. Second Vertical Seal
8. Tear Notch
9. Double Cutting
10. Pouch Catching Ⅰ
11. Pouch Catching Ⅱ
12. Pouch Advance
13. Pouch Opening
14. FillingⅠ
15. FillingⅡ
16. Top Seal
17. Finished Product
18. Product Outlet
| Type | Minimum Bag Size (mm) | Maximum Bag Size (mm) | Packing Capacity (ml) | Packing speed (ppm) | Power (kw) | Gas consumption (NL/min) | Weight (kg) | Equipment Size (mm) |
| JDZ-180D | 80*110 | 90*180 | 200 | 100-120 | 10 | 0.5 | 3800 | 6500*1300*1500 |
| JDZ-300D | 90*100 | 150*260 | 300 | 100-120 | 10 | 0.5 | 3800 | 6500*1300*1500 |

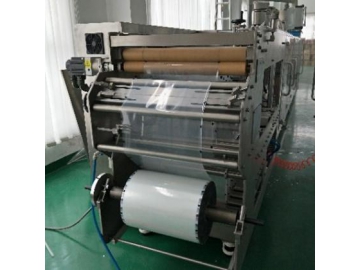

· Film Unwind Unit
· User-friendly design, quick and easy to change films
· Ensure good control of film tensile force

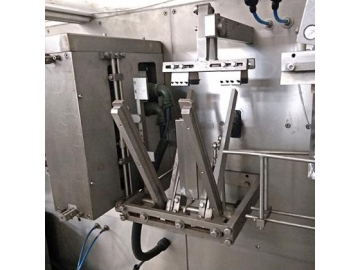

· More flexible and suitable for different pouch specifications.· Duplex Design
· Stable operation, easy adjustment

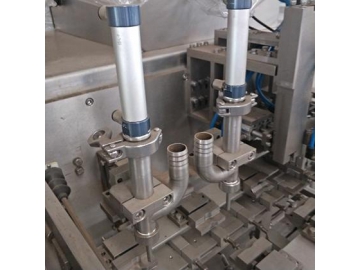

· 2 pouches at the same time, double productivity· Dual Filling Station
· Reduce filling time by half
· Improved filling accuracy
· Fill 2 products simultaneously
