Laser Cutting Machine
A laser cutting machine refers to a cutter using laser energy to create patterns onto or cut off workpieces. It is typically characterized by precision operation and it can be used for creating a great variety of types of patterns on different types of workpieces, including acrylic, wood panel, cloth, leather and metal materials.
We are a major manufacturer of laser cutting machine based in China and we welcome you to visit this page. Since our inception, we have been dedicated to offering high quality and competitive priced laser cutting equipment to worldwide clients. So, we use carefully selected materials, latest production techniques and high performance production facilities. Please contact us for more detailed information.
To help customers choose a most suitable laser cutting machine, we give the following specification information to you.

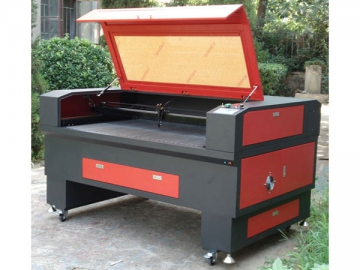

1. Non-Metal Materials Laser Cutting Machine, LTL-9012
Specifications| Model | LTL-9012 |
| Working area | 120cm*90cm |
| Equipment Dimension | 175cm*131cm*107cm (L*W*H) |
| Laser power | 60W/80W/100W/150W |
| Laser type | CO2 sealed laser tube, water-cooled |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-30000mm/min |
| Power supply | 220V/50HZ , 110V/60HZ |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | CorelDraw, PhotoShop, AutoCAD, TAJIMA |
| Driving system | 3 phases stepper motor |
| Net Weight | 400kg |
| Optional parts | Up-down worktable, USB Port, Red light pointer, Auto focus |
| Applicable material | Acrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood etc. |
2. Non-Metal Laser Cutting Machine, LTL-1325
Specifications| Model | LTL-1325 |
| Working area | 130cm*250cm (L*W) |
| Laser power | 80w/100/130w/150w |
| Laser type | CO2 sealed laser tube, water-cooled |
| Cutting speed | 0-50000mm/min |
| Laser Output | 1-100%software setting |
| Resetting positioning accuracy | ≤±0.01mm |
| Power supply | 220V/50HZ , 110V/60HZ |
| Operating temperature | 0 - 45°C |
| Operating humidity | 5 - 95% |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | CorelDraw, PhotoShop, AutoCAD, TAJIMA |
| Driving system | 3 phases stepper motor |
| Equipment Dimension | 308cm*200cm*112cm |
| Packing Dimension | 336cm*212cm*132cm |
| Net Weight | 1300kg |
In addition to laser cutting equipment, we can also offer CNC engraving machine, CNC wood cutting equipment and plasma cutting machinery, to name a few. We welcome you to contact us for more information.
