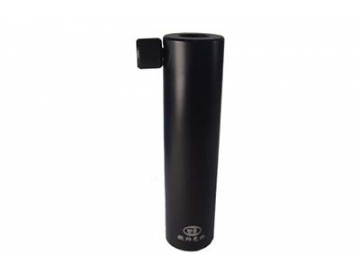

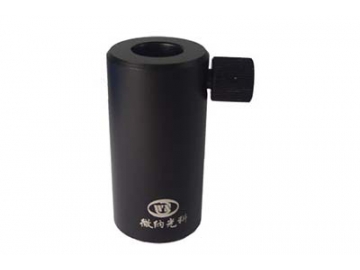

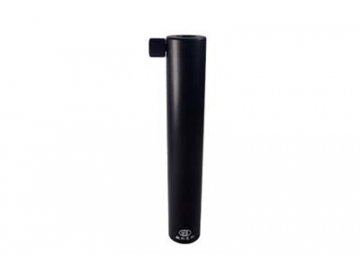

WN01PH Optical Post Holders
WN01PH optical post holder itself could not rotate or lift. 5 models to choose from, the height varies from 25mm-150mm.
Features- The diameter of center hole is 12mm, and could fix the holder at different height.
- The center hole has a precision V-shaped groove, which wouldn't change the position of other parts when adjusting the height of the holder, the groove also has stable locking effect.
- M6 thread holes are on the bottom of optical post holder, which makes the holder easy to connect with other optical base.
WN01PH25
WN01PH50
WN01PH75
WN01PH100
WN01PH150

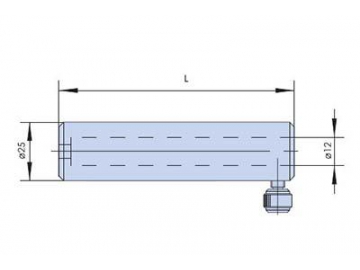

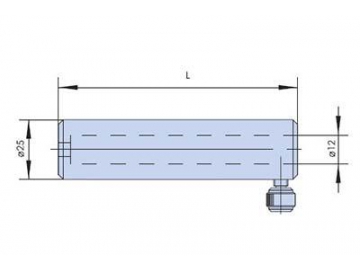

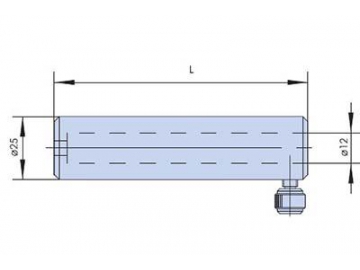

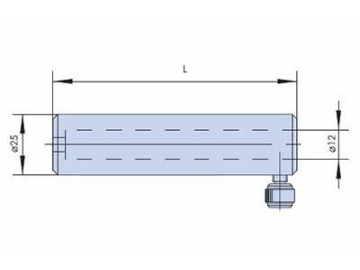

| Model | WN01PH25 | WN01PH50 | WN01PH75 | WN01PH100 | WN01PH150 |
| Center hole diameter | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm |
| L | 25 mm | 50 mm | 75 mm | 100 mm | 150 mm |
| Weight | 0.03 kg | 0.04 kg | 0.1 kg | 0.11 kg | 0.15 kg |
