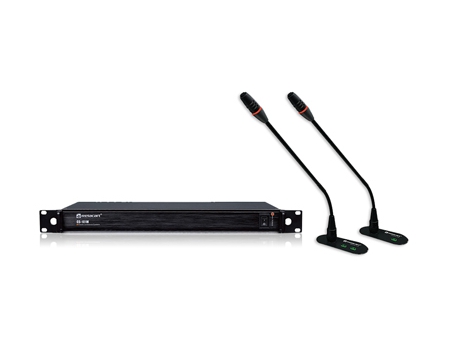

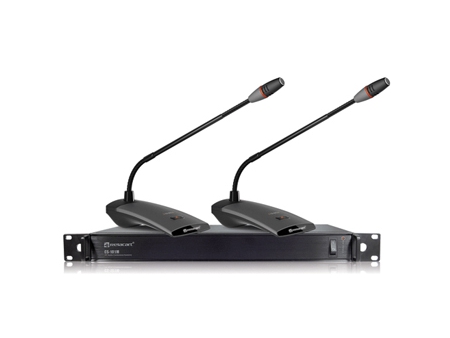

CS-101 Economical Digital Conference System

: http://supplyaudiosystem.com/2-1-1-cs-101-economical-digital-conference-system.html

These are compact and affordable audio conference systems with automatic video tracking which meets all essential requirements for audio discussion applications. This system supports video tracking and real-time recording, hand-in-hand connection and allows multiple person discussion. The system is activated once you talk.

The microphone unit can be designed with embedded style or desktop style upon request, and the system can connect with VTS-1000 automatic video tracking, support video tracking and real-time recording systems.

This series of conference discussion system is affordable and features simple operation and is an ideal solution for medium or large-sized conference rooms.

Key Features:

Built in AGC (automatic gain control), effectively maintains a suitable signal amplitude at its output, despite the signal amplitude variation at the input.
One central controller can connect with 45 microphone units, if you use the auxiliary power supply EXP-12V45, you can connect with maximum of 104 microphone units.
The central controller can manage activated microphones; the microphone is activated in order depending on who talks first and allows for a maximum of 1/3/6 microphones at a time.
Voice activated: Sound to open the microphone, when the maximum number of speakers is reached, the subsequently activated microphone is the input.
CS-101C chairman unit has the priority to override all delegate units and arrange speaking orders.
Connect with recorder for complete conference recording.
Connect with telephone coupler for remote tele-conference.
Gooseneck microphone for convenient adjustments.

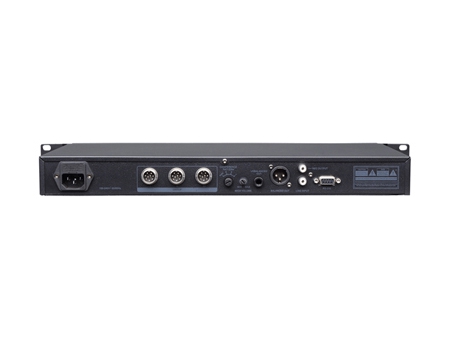

CS-101M Central Controller

Main Frame Size: 1U EIA standard
Power Supply: AC100-240V 50/60HZ
Max. Power Output: 45W
Frequency Response: 65Hz-15KHz
S/N: >85dB
T.H.D.: <0.7％
Audio Input: LINE IN: 0dBV (f=1KHz，THD<0.3％)
Audio Output: RCA x 1
XLR: 8dBV
RCA: 4dBV
Chairman/Representative Unit Connector: 9 core aviation plug
RS-232 Control Connector: Connect with intelligent central controller or video tracking system.
Dimension (mm): 410（W）x43 (H) x 206(D)
Weight: Approximately 2.3kg

CS-101C/CS-101BC Chairman Unit

Power Supply: DC12V (powered by the central controller)
Capsule: Condenser cardioid
Max. Current Consumption: 110mA
Power: 1.3W
Frequency Response: 65Hz-18 kHz
S/N: >90dBV
T.H.D.: <0.7％
Sensitivity: -20dBv/Pa
Chairman/Delegation Unit Connector: 9 core aviation plug
Microphone Length (mm): 340mm/420mm (Default)/480mm
Base Dimension (mm): CS-101C: 105（W）x43 (H) x 150(D)/CS-101BC: 100（W）x38（H）x85（D）
Weight: CS-101C approximately 780g/CS-101BC approximately 680g
Color: Black

CS-101C

CS-101D/CS-101BD Delegation Unit

Power Supply: DC12V (powered by the central controller)
Capsule: Condenser cardioid
Max. Current Consumption: 110mA
Power: 1.3W
Frequency Response: 65Hz-18kHz
S/N: >90dBV
T.H.D.: <0.7％
Sensitivity: -20dBv/Pa
Chairman/Delegation Unit connector: 9 core aviation plug
Microphone Length (mm): 340mm/420mm(Default)/480mm
Base Dimension (mm): CS-101D: 105（W）x43(H) x 150(D)/CS-101BD: 100（L）x38（W）x85(D）
Weight: CS-101D approximately 780g/CS-101BD approximately 680g
Color: Black

CS-101D

CS-101BD
