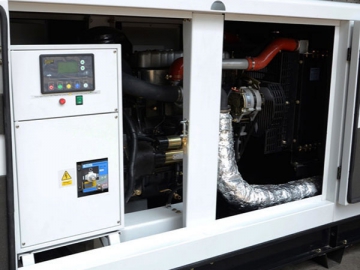

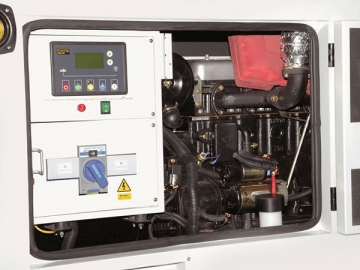

Kusing Diesel Generator, K30800
Technical Parameters
| Model | K30800 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 110.0 | 121.0 |
| KW | 88.0 | 96.8 | |
| Rated Power | KVA | 100.0 | 110.0 |
| KW | 80.0 | 88.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 144 | 159 |
| Fuel Consumption | G/KW.H | ≤230 | |
| Generator Controller | Auto Multi-function | ||
| Engine Model. | LR4M3L | ||
| Alternator | TCU228G | ||
| Clinder No. | 6 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 3400*1100*1450 | |
| Open Type | 2100*800*1100 | ||
| Optional | ATS (auto transfer switch) | ||
