Surface down-the-hole drill rig for open-pit mining

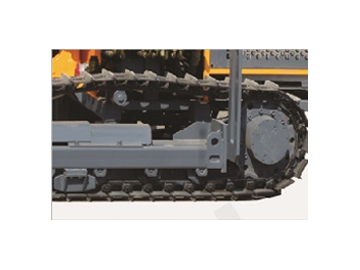

This type of rotary blasthole drilling rig is equipped with a 4-cylinder YUCHAI engine with low emission and less pollution. Featuring a piston motor and reinforced continuous track, these designs help the drilling machine work better in ramp climbing. Thanks to the wide swing and tilt angles, our rotary blasthole drilling rig is suitable for various drilling applications. Characterized by two rotational motors that can boost feed and pull out force and reliable operation, the surface drill rig slide base is arranged in a special way for easy operation and better visibility. For more convenient transportation, the rotary blasthole drilling rig is featured with reinforced materials.

Technical Specifications
Model KG726Ⅲ KG726ⅢH
Total weight 4200kg 4400kg
Dimensions 5600×2400×2300mm 5600×2600×2300mm
Rock hardness F=6-20
Hole diameter Ø90-115mm
Hole depth 25m
RPM 0-120rpm
Maximum rotation torque 2000N.m(Max)
Pull out force 18kN
Feed type Oil cylinder leaf chain
Feed extension travel 3780mm
Tramming speed 0-2.5km/h
Gradeability ≤30°
Ground clearance 350mm
Tilt angle Down:135°, up:50°, total:185°
Swing angle Left:100°, right:45°, total:145°
Boom tilt angle Down:50°, up:25°, total:75°
Boom swing angle Left:44°, right:45°, total:89°
Boom extension 900mm
Engine type YCD4R23T8-80(59kW/2400r/min)/Yuchai YCD4R23T8-80(59kW/2400r/min)
DTH hammer M30
Drilling rod Ø64×3m
Flushing air 9-17m³/min
Maximum height of horizontal holes 2750mm
Minimum height of horizontal holes 350mm

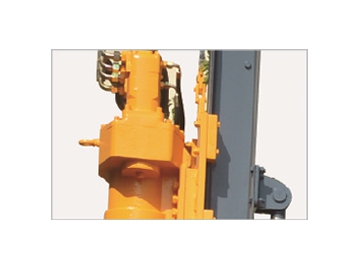

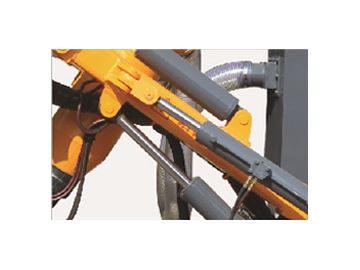

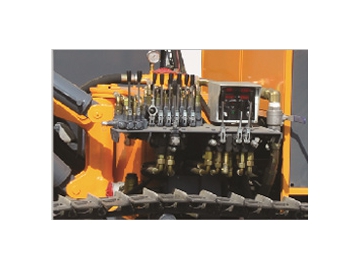

Details
Recommended Air Compressors
  • Diesel engine portable screw air compressor
    Kaishan LGCY-12/10
    Kaishan KSCY-580/13

Note: Air compressor selection depends on the hole diameter and air hose length.
