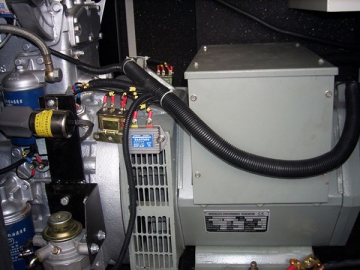

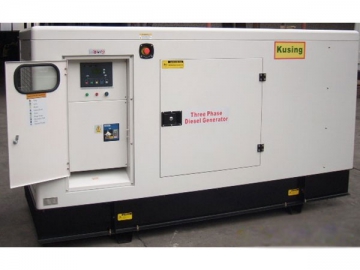

Kusing Diesel Generator, K31800
Technical Parameters
| Model | K31800 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 247.5 | 261.3 |
| KW | 198.0 | 209.0 | |
| Rated Power | KVA | 225.0 | 237.5 |
| KW | 180.0 | 190.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 325 | 343 |
| Fuel Consumption | G/KW.H | ≤218 | |
| Generator Controller | Auto Multi-function | ||
| Engine Model. | LR6H4L | ||
| Alternator | TCU288E | ||
| Clinder No. | 6 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 3800*1200*1900 | |
| Open Type | 2300*850*1200 | ||
| Optional | ATS (auto transfer switch) | ||
